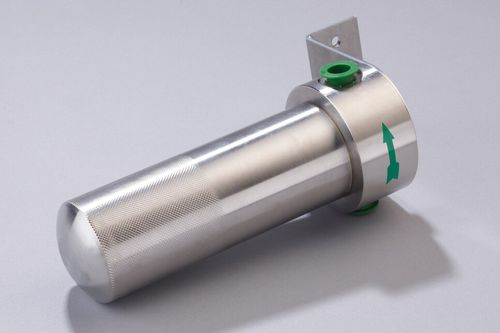

Cartridge filter housing FSS-2GF

for liquidsPTFEstainless steel

-Modular designed filter with filter head and body made of stainless steel -Glass-fiber filter element with a filter porosity of 2 µm -Adapter for glass-fiber filter element made of PTFE -Suitable for high dust levels -With wall-mounting bracket -Straightforward filter element change without tools -Low dead volume -3 female threaded gas connections: G 1/4" -Sample gas and ambient temperature: max. +180 °C [+356 °F] -Material of sample-contacting parts: glass-fiber, PTFE, stainless steel, Viton® Material: stainless steel, filter elements in different materials and porosities, with or without condensate connection M&C universal filters reliably separate solids, in particular extremely fine particles, occurring in analytical technology in gas filtration, using very fine, deep-acting filter elements. Thanks to their universal design, the filters can also be used as separators (without a filter element), liquid filters or, with adsorption cartridges, as an adsorption filters. For ambient or medium temperatures of up to 180 °C, a stainless steel version FSS or the FT-H version can be offered. Universal filter type FSS‑2GF, out of stainless steel with glass‑fiber element and PTFE filter holder, filter porosity: 2 µm, connection: G 1/4" female, material: stainless steel 316 Ti, Viton®, glass fiber
