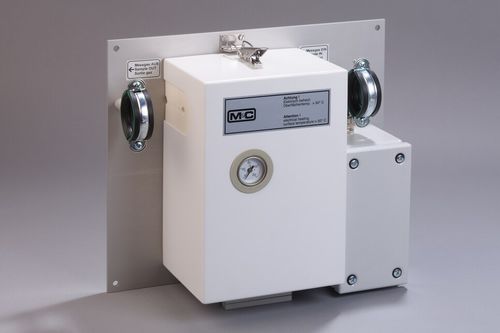

Gas filter FT-3SS-H2

cartridgeseparationPTFE

-Electrically heated universal filter with integrated thermostat -Heated up to max. +180 °C [+356 °F] -Filter head made of carbon-reinforced PTFE -Stainless steel filter element with a filter porosity of 3 μm -Control thermostat with high-temperature limiter and low-temperature alarm contact -With thermally insulated protective housing -On a heat-decoupled mounting plate for wall mounting -With heated connection fittings to prevent cold bridges -2 gas connections: female threaded G 1/4" -Power: 230 V -Material of sample-contacting parts: stainless steel, carbon-reinforced PTFE, glass, Viton® The M&C electrically heated universal filter is used for the separation of solid contaminants in analytical technology up to max. 180 °C operating temperature. Filter elements with high filter porosity and great in-depth effect are used for efficient filtration of ultrafine particles. Universal filter type FT‑3SS‑H2 heated to max. 180 °C, heating section divided into 2 parts with heated inlets, mounted on a base plate with heat‑insulated cover, incl. temperature controller, adjustable from 0‑180 °C, with high‑temperature limiter and low‑temperature alarm (each 30 °C to T\fs12 SET ), thermometer, filter body made of carbon‑reinforced PTFE with in‑depth filter element made of stainless steel 316, filter unit: 3 µm, connection: G 1/4" female, material: PTFE, Viton®, glass, stainless steel 316, power: 230 V/50 Hz
