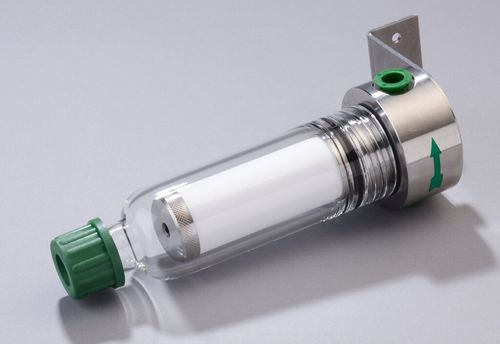

Cartridge filter housing FS-2T-D

for liquidsPTFEstainless steel

-Modular designed filter with condensate outlet -With filter head made of stainless steel -Deep-acting PTFE filter element with a filter porosity of 2 µm -With wall-mounting bracket -Straightforward filter element change without tools -Low dead volume -For universal use -3 female threaded gas connections: G 1/4" -Condensate outlet with compression tube fitting: GL 25 nut with GL 25-12 mm sealing ring -Sample gas and ambient temperature: max. +180 °C [+356 °F] - Material of sample-contacting parts: PTFE, stainless steel, Viton®, glass Material: stainless steel, glass, filter elements in different materials and porosities, with or without condensate connection, also with liquid alarm sensor M&C universal filters reliably separate solids, in particular extremely fine particles, occurring in analytical technology in gas filtration, using very fine, deep-acting filter elements. Thanks to their universal design, the filters can also be used as separators (without a filter element), liquid filters or, with adsorption cartridges, as an adsorption filter. For ambient or medium temperatures of up to 180 °C, a stainless steel version FSS or the FT-H version can be offered.
