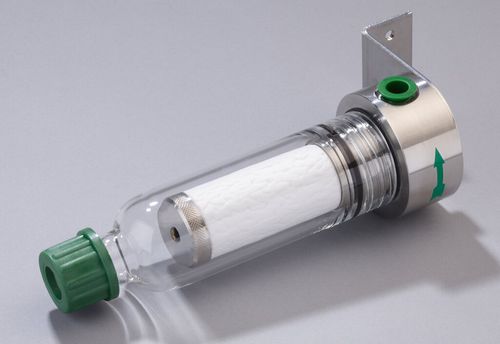

Cartridge filter housing FS-0,1GF-D

for liquidsstainless steel

-Modular designed filter with condensate outlet -With filter head made of stainless steel -Glass-fiber filter element for ultrafine filtration -Filter porosity: 0.1 µm -With wall-mounting bracket -Straightforward filter element change without tools -Low dead volume -3 female threaded gas connections: G 1/4" -Condensate outlet with compression tube fitting: GL 25 nut with GL 25-12 mm sealing ring -Sample gas and ambient temperature: max. +180 °C [+356 °F] -Material of sample-contacting parts: glass-fiber, stainless steel, Viton®, glass, PTFE Material: stainless steel, glass, filter elements in different materials and porosities, with or without condensate connection, also with liquid alarm sensor M&C universal filters reliably separate solids, in particular extremely fine particles, occurring in analytical technology in gas filtration, using very fine, deep-acting filter elements. Thanks to their universal design, the filters can also be used as separators (without a filter element), liquid filters or, with adsorption cartridges, as an adsorption filter. For ambient or medium temperatures of up to 180 °C, a stainless steel version FSS or the FT-H version can be offered. Universal filter type FS‑0,1GF‑D with condensate pre‑separator and in‑depth glass‑fiber filter element, filter porosity: 0.1 µm, connection: G 1/4" female, material: SS 316Ti, Viton®, glass‑fiber
