Gas filter FSS-FW-H350

cartridgeplateseparation

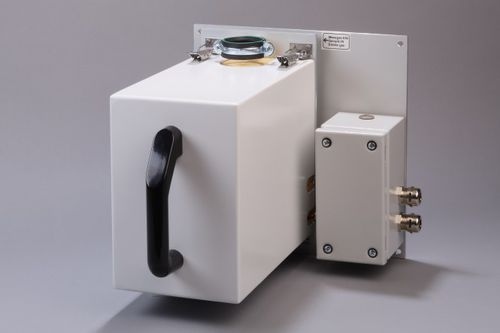

- Electrically heated filter with integrated thermostat - Filter chamber made of stainless steel - With spun glass filling - Control thermostat with high-temperature limiter and low-temperature alarm contact - With thermally insulated protective housing - On a heat-decoupled mounting plate for wall mounting - With heated connection fittings to prevent cold bridges - 2 gas connections: tube connector Ø 6 mm - Power: 230 V - Material of sample-contacting parts: spun glass, stainless steel, graphite The electrically heated M&C filter type FSS.../H350 is used for the separation of solid contaminants in analytical technology up to 350 °C operating temperature. Filter elements with high filter porosity and great in-depth effect are used for efficient filtration of ultrafine particles. Heated filter type FSS‑3SS/H350 with SS filter element, filter porosity: 3 µm, connection: G 1/4" female, completely mounted in a housing with heat‑insulated cover, electrically heated up to max. 350 °C, adjustable via the built‑in control thermostat, with high‑temperature limiter at +30 °C above Tset responding with reset key and with low‑temperature alarm at ‑20 °C below Tset, as potential‑free contact output, material: stainless steel 316Ti, graphite, power: 230 V/50 Hz
