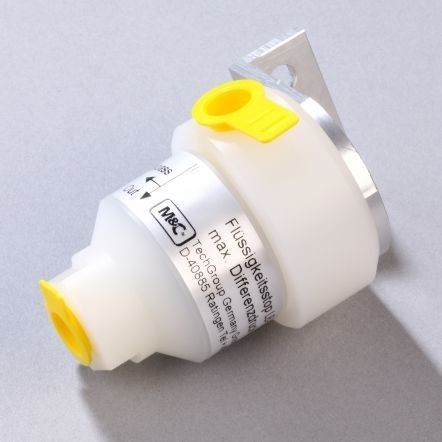

Gas filter LB-1/PVcapsulePVDFPTFE
Add to favorites
Compare this product
Characteristics
- Designed for
- gas
- Filtration element
- capsule
- Material
- PVDF, PTFE
- Other characteristics
- bypass
- Operating pressure
Min.: 0.3 bar
(4.351 psi)Max.: 10 bar
(145.038 psi)- Flow
100 l/h, 200 l/h
(26.417 us gal/h, 52.834 us gal/h)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 80 °C
(176 °F)
Description
- Safe protection against liquid ingress
- Reliable separation of condensate
- Easy change of the hydrophobic protective membrane
- Including wall-mounting bracket
- Material of sample-contacting parts: PVDF, FKM, PTFE, Polyester, glass
For protecting gas analyzers against liquids, material: PVDF
The M&C liquid stop LB-1... is suitable for protecting analyzers against the inrush of liquids from the upstream sample gas conditioning system. Severe damages of the analyzer can thereby be avoided. The most effective position of the liquid stop LB-1... is downstream the gas conditioning unit, directly in front of the flow meter of the analyzer or gas chromatograph.
Liquid stop type LB‑1/PV with bypass function, connection: 1/8" NPT female, material: PVDF, PTFE, Viton®
