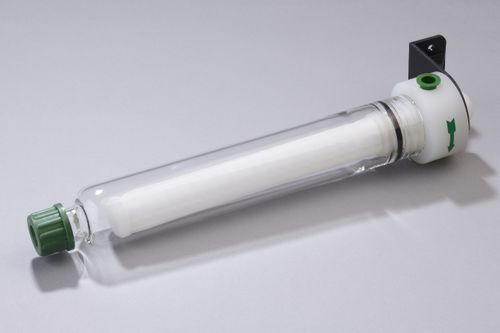

Cartridge filter housing FP-70P200-D

for liquidsPVDFpolypropylene

- Universal bypass filter for liquid filtration - Filtration of a liquid flow in a settling area - Coarse mesh filter element made of PP with a filter porosity of 70 μm - Filter head made of PVDF - Easy assembly and maintenance - With wall-mounting bracket - Connections for sample inlet or bypass outlet: female threaded G 3/8" at the filter head, GL 25-12 mm at the filter body - Connection for sample outlet: female threaded G 1/4" at the filter head - Material of sample-contacting parts: PP, PVDF, glass, Viton® The M&C universal bypass filter is used in liquid analysis for the filtration of small sample quantities from a liquid flow. Two different filtration methods are available: 1. Filter Type FP-70P200-D: Filtration of a liquid flow in a settling area. 2. Filter Type FP-70 (200) P190-D: Filtration of a liquid flow with self-cleaning effect through a bypass system a with fast flow rate via the active filter surface. Universal bypass filter type FP‑70P200‑D with polypropylene filter element, 200 mm long, filter porosity: 70 µm, connection: G 1/4" female, material: PVDF, Viton®, glass, PP
