3-axis CNC machining center PS65

vertical2-spindleHSK A-63

Overview

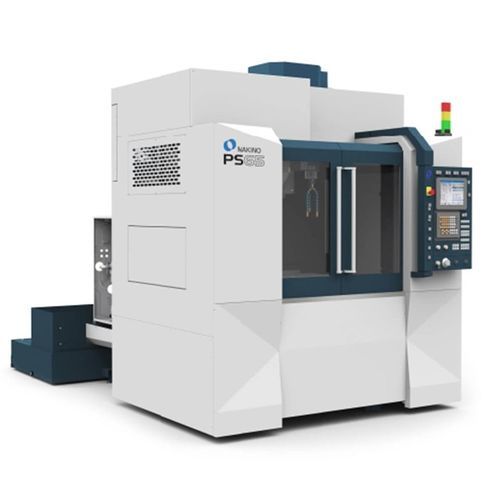

The PS65 vertical machining center delivers a balance of power, accuracy, speed and reliability for job-shop and production environments in aerospace, medical, automotive and general machining. Core-cooled components and a high-capability spindle support high metal removal rates and consistent surface quality.

Design & Technologies
Rigid structural design from base casting to spindle minimizes deflection. Core-cooled ball screws circulate thermally controlled lubrication through the ball screw and support bearing to stabilize motion temperatures, reduce thermal growth and extend component life. The standard 14,000 rpm CAT40 spindle (HSK-A63 optional) features large-diameter 85 mm bearings and a stiff, balanced construction to provide torque and stability for modern cutting tools. Tool handling allows exterior loading or direct spindle loading and a dual-speed tool change detects lighter tools to shorten exchange cycles. Chip and coolant management—steep internal slopes, coolant flush on tele-covers, spiral conveyors, nozzle and flush coolant and cyclonic filtration for TSC—efficiently clear chips from the cutting zone.

Control
The Makino Pro P control integrates a 10.4 inch color touch LCD with high-speed processing and Fanuc hardware integration for stable, fast command execution and intuitive operation. The control supports program storage and advanced functions for production monitoring and maintenance.

Standard Features

• 14,000 rpm, CAT40 spindle (HSK-A63 optional)
• Two-range spindle
• Core-cooled ball screws
• Thirty (30) tool magazine (upgradeable to 60)
• ATC shutter
• 1,300 mm x 510 mm table
• T-slot type table (5 x 18H8)
• 435 PSI through-spindle coolant
• Cyclonic filtration (for TSC)
• Automatic air blow
• Nozzle coolant
• Work area coolant flush
• Work area chip augers
• Overhead shower coolant
• Rear scraper drum type LUCC
• Coolant tank with level sensor
• Professional Pro P control
• 10.4 inch color touch-screen
• Part program storage (1,280 meters)
• Program numbers (400)
• Rigid tapping (G84)
• Centralized auto grease
• Fully enclosed splashguard
• Splashguard and ATC door interlocks
• Portable manual pulse generator
• Air dryer
• Inch/metric selection
• Helical interpolation
• Programming data input (G10)
• Tool offset pairs (400 total)
• Tool offset memory C
• Cutter compensation C
• Work coordinate system (48 pairs)
• Maintenance advice system (MA)
• Run hour and part count display
• Tool length measurement (manual)
• Spindle load monitoring (SLM)
• Spare tool selection (STS)
• Tool life monitoring (TLM)
• Signal light 3-layer
• LED worklight
• Transformer
• Maintenance tool set
• User documentation

Specifications

• Table: 920 x 510 mm (36.2 in x 20.0 in)
• Travel: X: 660 mm (26.0 in), Y: 510 mm (20.0 in), Z: 460 mm (18.1 in)
• Spindle RPM: 14,000 rpm
• Spindle taper: CAT40 (HSK-A63 optional)
• Spindle bearings: large diameter, 85 mm (designed to minimize deflection)
• Rapid traverse: X-axis 48,000 mm/min (1,890 ipm); Y/Z axes 36,000 mm/min (1,417 ipm)
• Cutting feedrate: 30,000 mm/min (1,181 ipm)
• Maximum payload: 600 kg (1,323 lbs)
• ATC capacity: 30 tools standard; optional 60-tool magazine
• Maximum tool weight: 8 kg (17.6 lbs)
• Through-spindle coolant: 435 PSI
• Rib head available: Yes
• Optional ATC capacity: Yes
• Cooling/lubrication: core-cooled ball screws; thermally controlled lubrication for ball screws and support bearings
• Control: Makino Pro P embedded control with 10.4 inch color touch display (Fanuc hardware integration)
