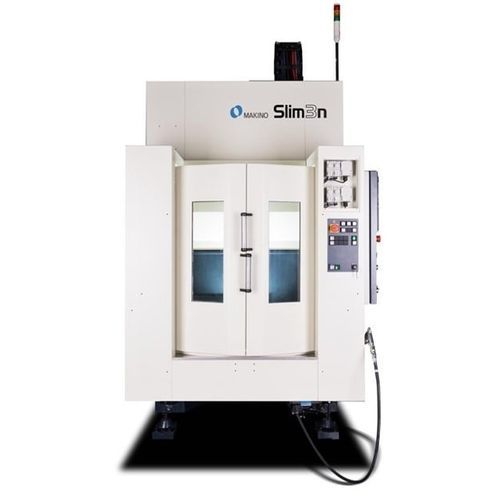

3-axis CNC machining center Slim3n APC

verticalHSK-A5026 tools

Overview
Compact vertical machining center designed for high-volume part production. The Slim3n APC from Makino integrates an integral pallet changer (APC) enabling simultaneous setup on one pallet while machining on the other to reduce setup time and increase throughput.

Design and Performance
FEA-optimized closed-frame structure with long supporting columns provides high rigidity and torsional stiffness for consistent machining accuracy. Makino spindle technology emphasizes rigidity, constant preload, multi-plane balancing and reduced thermal growth to minimize vibration. Two spindle options are available: 16,000 rpm (standard) and 8,000 rpm (optional). The standard HSK-A50 taper supports a wide range of tooling.

Configuration for Production
The machine features a 26-tool ATC with armless direct tool pick and an integral door design for reliable, fast tool changes. Coolant options include nozzle and flush coolant; the bed is sloped for efficient chip evacuation. A rear Lift Up Chip Conveyor is available for high chip volumes. Rapid traverse and cutting feed capabilities support high-speed production cycles.

Technical Specifications (Metric)
Pallet: 550 mm x 300 mm
X / Y / Z travels: X: 500 mm, Y: 400 mm, Z: 400 mm
Spindle RPM: 16,000 (optional 8,000)
Spindle Taper: HSK-A50
Rapid Traverse: 50,000 mm/min
Cutting Feedrate: 1 - 20,000 mm/min
Maximum Workpiece: ⌀1,200 mm x 475 mm (with limitations)
Maximum Payload: 400 kg
ATC Capacity: 26

Technical Specifications (Imperial)
Pallet: 21.6" x 11.8"
X / Y / Z travels: X: 19.7", Y: 15.7", Z: 15.7"
Spindle RPM: 16,000 (optional 8,000)
Spindle Taper: HSK-A50
Rapid Traverse: 1969 ipm
Cutting Feedrate: 0.04 - 787 ipm
Maximum Workpiece: ⌀47.2" x 18.7" (with limitations)
Maximum Payload: 881 lb
ATC Capacity: 26

Features / Technical specifications

• Machine type: Compact vertical machining center, APC (integral pallet changer) for high-volume production
• Structural design: Closed frame with long supporting columns; FEA-optimized for rigidity and torsional stiffness
• Spindle options: 16,000 rpm standard; 8,000 rpm optional; spindle taper HSK-A50
• Tooling: 26-tool ATC with armless direct tool pick and integral door design
• Feed / speed capability: Rapid traverse up to 50,000 mm/min; cutting feed 1–20,000 mm/min (metric)
• Pallet size / travels: Pallet 550 x 300 mm; travels X 500 mm, Y 400 mm, Z 400 mm
• Workpiece capacity: Maximum workpiece diameter 1,200 mm x 475 mm (with limitations)
• Payload: Maximum 400 kg
• Coolant / chip handling: Standard nozzle and flush coolant; sloped structure for evacuation; optional Lift Up Chip Conveyor
