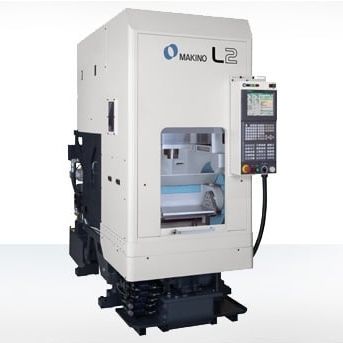

3-axis CNC machining center L2 APC

verticalHSK-A5015 tools

Overview
The L2 vertical machining center is engineered for high‑volume production of small components. Its rigid structure, compact footprint and versatile spindle options provide a stable platform for unattended, continuous operation. The machine integrates easily with manual or automated part handling systems to suit various production flows.

Product summary
The L2 targets high‑productivity, small‑part machining. Standard configuration includes a 16,000 RPM, 20 HP HSK‑A50 spindle, a 15‑station tool magazine (30 optional), and rapid traverse and cutting feedrates up to 48 m/min (1,890 ipm). The compact footprint (approx. 3 ft wide x 7 ft deep) minimizes floor space while enabling easy integration with automation. The machine supports aggressive milling, drilling and tapping cycles and reduces part cycle times for mass production.

Standard Features

• Stroke – up Specification
• Fifteen (15) Tool Magazine
• 16,000 rpm, HSK–A50 Spindle
• 400 L Coolant Tank
• Rear discharge LUCC
• X, Y, Z Axis Roller Guides
• Broken Tool Sensor at ATC Side
• Overhead Shower Coolant
• 210psi Through Spindle Coolant
• Nozzle Coolant
• Coolant Temperature Controller
• Right Discharge LUCC
• Fixture Shower Coolant for Stocker
• Splash and Chip Shield
• Automatic Grease Supply Unit
• Automatic Open / Close Front Door
• Fixture Hydraulic & Air Supply
• Air Dryer
• Makino Professional L Control
• Inch/Metric Selection
• Helical Interpolation
• Cylindrical Interpolation
• Part Program Storage (1,280 m)
• Part Programs (400 Total)
• Tool Offsets (400 Total)
• Work Coordinate Pairs (48)
• High Speed Skip Function
• Rigid Tapping
• Fixed Type MPG
• Custom Macro (700 variables)
• Extended Part Program Editing
• Run Hour and Parts Quantity Display
• Worklight
• Signal Light (3 layer)

Technical specifications (metric)
Table: 120 mm diameter
X: 400 mm Y: 300 mm Z: 300 mm

A‑Axis: 0.001°
Spindle RPM: 16,000 (HSK‑A50), Optional - 8,000 (HSK‑A50)
Rapid Traverse: 48 m/min
Cutting Feedrate: 48 m/min
Maximum Workpiece: 600 x 400 x 500 mm
Maximum Payload: 300 kg
ATC Capacity: 15 (HSK‑A50) - Standard (30 opt)
Chip to Chip: 3.5 to 4.5 sec
Maximum Tool Diameter: 30 mm / 80 mm (ALL/ADJ)
Maximum Tool Weight: 5 kg
Optional ATC Capacity: Yes

Technical specifications (english)
Table: 4.75" diameter
X: 15.7" Y: 11.8" Z: 11.8"

A‑Axis: 0.001°
Spindle RPM: 16,000 (HSK‑A50), Optional - 8,000 (HSK‑A50)
Rapid Traverse: 1,890 ipm
Cutting Feedrate: 1,890 ipm
Maximum Workpiece: 39.4" x 19.7" x 17.7"
Maximum Payload: 661 lbs
ATC Capacity: 15 (HSK‑A50) - Standard (30 opt)
Chip to Chip: 3.5 to 4.5 sec
Maximum Tool Diameter: 1.18" / 3.14" (ALL/ADJ)
Maximum Tool Weight: 11 lbs
Optional ATC Capacity: Yes

Technical data / specifications

• Model: L2 APC
• Machine type: Vertical 3‑Axis machining center
• Spindle: 16,000 RPM, 20 HP (HSK–A50) — optional 8,000 RPM
• ATC Capacity: 15 tools standard (30 optional)
• Table / Stroke (metric): X 400 mm, Y 300 mm, Z 300 mm
• Max workpiece envelope (metric): 600 x 400 x 500 mm
• Max payload: 300 kg
• Rapid traverse: 48 m/min
• Cutting feedrate: 48 m/min
• Chip-to-chip time: 3.5–4.5 sec
• Through-spindle coolant: 210 psi
• Maximum tool diameter / weight: 30 mm / 5 kg (ALL/ADJ: 80 mm)
• Control: Makino Professional L Control (inch/metric selectable)
• Storage: Part Program Storage 1,280 m; 400 part programs; 400 tool offsets
• Work coordinate pairs: 48
