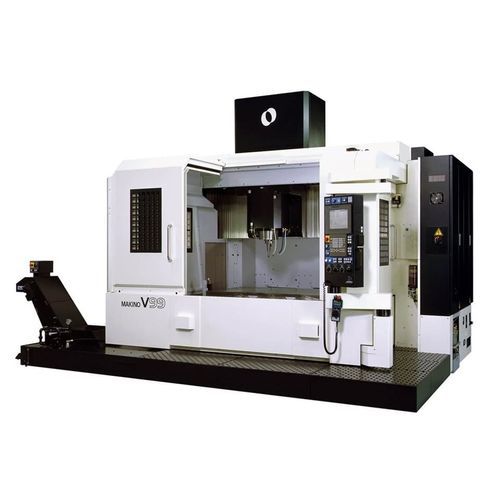

3-axis CNC machining center V99 (50 Taper)verticalCAT50HSK-A 100
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-A 100, CAT50
- Number of tool stations
- 40 tools, 30 tools, 60 tools
- Applications
- for molds
- X travel
1,500 mm
(59.06 in)- Y travel
1,000 mm
(39.37 in)- Z travel
800 mm
(31.5 in)- Rotational speed
12,000 rpm, 18,000 rpm
(75,398 rad.min-1, 113,097 rad.min-1)- Work feed X-axis
20,000 mm/min
(13.12 in/s)- Work feed Y-axis
20,000 mm/min
(13.12 in/s)- Work feed Z-axis
20,000 mm/min
(13.12 in/s)- Table load capacity
4,000 kg
(8,818 lb)- Tool weight (max)
20 kg
(44.1 lb)- Tool-changing time
5 s
