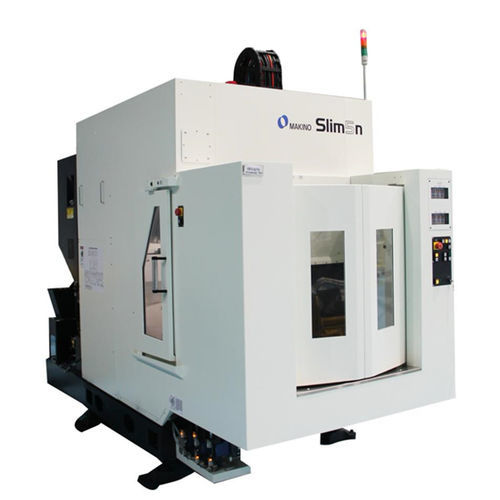

3-axis CNC machining center Slim5n APC

vertical2-spindleHSK-A50

Overview
The Slim5n APC is a compact vertical machining center engineered for high-volume production with a primary focus on milling and integrated drill/tap capability. It supports automation and features an integral pallet changer for simultaneous setup and machining to reduce non-productive time and increase throughput.

Key design and performance features

• FEA-optimized closed frame and extended support columns for high structural rigidity and torsional stiffness.
• Advanced spindle technology providing rigidity, consistent preload, multi-plane balancing and reduced vibration/thermal growth.
• Two spindle options: 16,000 rpm (standard) and 8,000 rpm (optional); both with HSK-A50 interface.
• Standard 24-tool ATC with armless direct pick and integral door for fast, reliable indexing.
• Integral pallet changer enabling concurrent setup and machining to maximize uptime.
• Coolant system with nozzle and flush functions and sloped work zone surfaces for efficient chip evacuation.
• Rear lift-up chip conveyor for high-volume chip removal; auto doors for easier tending and optional robot interface for automation integration.

Technical specifications

• Pallet dimensions: 900 mm × 593 mm
• Axes travel: X = 710 mm, Y = 400 mm, Z = 410 mm
• Spindle speed: 16,000 rpm (optional 8,000 rpm)
• Spindle taper/interface: HSK-A50
• Rapid traverse: X 60,000 / Y 50,000 / Z 60,000 mm/min
• Cutting feedrate: 1 – 20,000 mm/min
• Maximum workpiece capacity: Ø 1,320 mm × 475 mm (with limitations)
• Maximum payload: 300 kg
• Automatic tool changer capacity: 24 tools
• Integral pallet changer for simultaneous setup and machining
• Coolant system with nozzle and flush coolant; rear lift-up chip conveyor; auto doors; optional robot interface
