3-axis CNC machining center F8

verticalCAT50HSK-A 100

Overview

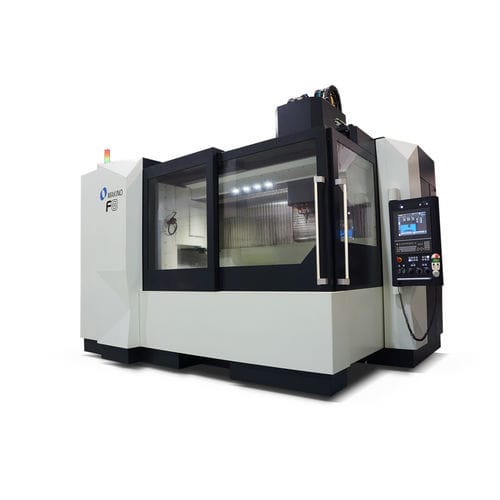

The F8 vertical machining center is engineered for large-part machining, delivering the stiffness, rigidity and precision required for heavy cutting, roughing and finishing of large die, mold and medical components. Its open-access design simplifies setup and changeover to reduce WIP and overall lead times.

Key product features

• Standard 50 hp, 10,000 RPM spindle (CAT50) with optional HSK-A100 or high-speed HSK-A63 for die/mold work
• Large workzone and 2,500 kg maximum payload suitable for heavy components
• Scale feedback and core-cooled ballscrews to minimize thermal growth and maintain long-term accuracy
• 30-tool magazine with broad tooling capacity; supports large-diameter and heavy tools
• Makino Professional 6 control (Windows CE) with large color touch GUI and PC-like editing functions
• Optional SGI.5 servo control and advanced data management to reduce cycle times on complex cavities and cores

Technical specification tables (as shown)
Metric table header: Table: 1,550 x 800 mm
X: 1,300 mm Y: 800 mm Z: 650 mm

Metric technical specifications:
Spindle RPM: 10,000
Spindle Taper: CAT50 (HSK-A100 OPT)
Rapid Traverse: 24,000 mm/min
Cutting Feedrate: 24,000 mm/min
Maximum Workpiece: 1,550 x 800 x 550 mm
Maximum Payload: 2,500 kg
ATC Capacity: 30 tools
Maximum Tool Diameter: 200 mm
Maximum Tool Weight: 20 kg
Optional ATC Capacity: Yes

English table header: Table: 61" x 31.5"
X: 51.2" Y: 31.5" Z: 25.6"

English technical specifications:
Spindle RPM: 10,000
Spindle Taper: CAT50 (HSK-A100 OPT)
Rapid Traverse: 945 ipm
Cutting Feedrate: 945 ipm
Maximum Workpiece: 61" x 31.5" x 21.7"
Maximum Payload: 5,511 lbs
ATC Capacity: 30 tools
Maximum Tool Diameter: 7.87"
Maximum Tool Weight: 44 lbs
Optional ATC Capacity: Yes

Control, spindle and options
Standard control is Makino Professional 6 (Windows CE) with a large color touch-screen GUI and operator-friendly, menu-driven functions. Standard spindle is 50 hp, 10,000 RPM (CAT50) with optional HSK-A100 or high-speed 20,000 RPM HSK-A63 for die/mold applications. Available options include advanced data management and SGI.5 servo control to shorten cycle times on complex die/mold features.

Applications
Designed for large-part machining, big die & mold components, die/mold finishing and roughing, high-speed/hard-milling and medical production requiring complex 3-D contoured geometry.

Technical specifications

• Model: F8 (Vertical 3-Axis)
• Table (metric): 1,550 x 800 mm; X: 1,300 mm, Y: 800 mm, Z: 650 mm
• Table (imperial): 61" x 31.5"; X: 51.2", Y: 31.5", Z: 25.6"
• Spindle power (standard): 50 hp
• Spindle speed (standard): 10,000 RPM
• Optional spindle: up to 20,000 RPM (HSK-A63 option)
• Spindle taper: CAT50 standard (HSK-A100 optional)
• Rapid traverse: 24,000 mm/min (945 ipm)
• Cutting feedrate: 24,000 mm/min (945 ipm)
• Maximum workpiece (metric): 1,550 x 800 x 550 mm
• Maximum workpiece (imperial): 61" x 31.5" x 21.7"
• Maximum payload: 2,500 kg (5,511 lbs)
• ATC capacity: 30 tools (optional ATC capacity available)
• Maximum tool diameter: 200 mm (7.87")
• Maximum tool weight: 20 kg (44 lbs)
• Feedback & accuracy features: scale feedback, core-cooled ballscrews to reduce thermal growth
• Control system: Makino Professional 6 (Windows CE) with large color touch-screen GUI
• Advanced options: Advanced data management; Super Geometric Intelligence (SGI.5) servo control for reduced cycle times on complex die/mold machining
