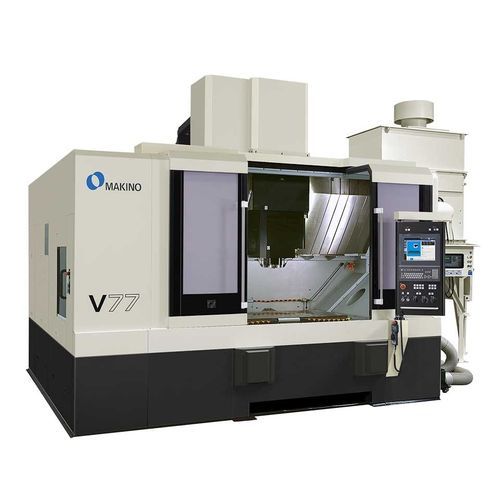

3-axis CNC machining center V77 (40 Taper)

verticalHSK A-63HSK-63

Overview
The V77 vertical machining center is engineered to minimize thermal distortion and deliver micron-level precision for die, mold and precision-part manufacturing. Thermal-control elements include Makino's core-cooled under-race lubrication and twin-shield splash guards to stabilize spindle geometry and improve surface finish consistency.

Applications
Suitable for large and medium die/mold machining, hardened-steel cavities and cores, and precision components requiring tight geometric tolerances and superior surface quality. The V77 (40 Taper) performs both roughing and finishing operations efficiently and with reduced cycle time compared with general-purpose machines.

Spindle, Tooling & ATC
Equipped with a CAT40 taper spindle at 20,000 rpm, optionally configurable with HSK-A63 or HSK-F63 (30,000 rpm) interfaces. Standard ATC capacity is 30 tools with optional expansion to 40 or 80. Tool-to-tool change, maximum tool diameter and tool weight are specified in the technical block.

Control & Performance
Fitted with the Makino Professional 6 control providing a stable NC platform and an operator-oriented graphical interface (large color touch screen). Advanced data management and Makino's SGI.5 (Super Geometric Intelligence) servo control reduce cycle times for dies, complex cavities and cores (manufacturer claims up to 40% improvement versus many other controls).

Technical Specifications (Metric)
Table: 1,400 x 700 mm
X: 1,200 mm Y: 700 mm Z: 650 mm
Spindle RPM: 20,000
Spindle Taper: CAT40 (HSK-63 opt)
Rapid Traverse: 20,000 mm/min
Cutting Feedrate: 20,000 mm/min
Maximum Workpiece: 1,400 x 700 x 550 mm
Maximum Payload: 2,500 kg
ATC Capacity: 30 (40 opt)
Tool to Tool: 5 secs
Maximum Tool Diameter: 120 mm
Maximum Tool Weight: 8 kg
Optional ATC Capacity: Yes

Technical Specifications (English)
Table: 55.1" x 27.6"
X: 47.2" Y: 27.6" Z: 25.6"
Spindle RPM: 20,000
Spindle Taper: CAT40 (HSK-63 opt)
Rapid Traverse: 787 in/min
Cutting Feedrate: 787 in/min
Maximum Workpiece: 55.1" x 27.6" x 21.7"
Maximum Payload: 5,500 lbs
ATC Capacity: 30 (40 opt)
Tool to Tool: 5 secs
Maximum Tool Diameter: 4.7"
Maximum Tool Weight: 17.6 lbs
Optional ATC Capacity: Yes

Notes
Standard and optional configurations (spindle interfaces, spindle speeds, magazine sizes) are detailed in the technical blocks. The machine emphasizes thermal control and a control platform designed for operator productivity and advanced servo performance.

Technical features / specifications

• Model: V77 (40 Taper)
• Spindle RPM: 20,000
• Spindle Taper: CAT40 (HSK-63 optional)
• Optional Spindle Interfaces: HSK-A63 or HSK-F63 (30,000 rpm option)
• Travel (Metric): X 1,200 mm; Y 700 mm; Z 650 mm
• Travel (Imperial): X 47.2"; Y 27.6"; Z 25.6"
• Rapid Traverse: 20,000 mm/min (787 in/min)
• Cutting Feedrate: 20,000 mm/min (787 in/min)
• Maximum Workpiece Envelope: 1,400 x 700 x 550 mm (55.1" x 27.6" x 21.7")
• Maximum Payload: 2,500 kg (5,500 lbs)
• ATC Capacity: 30 standard (40 optional; 80 optional expansion available)
• Tool-to-Tool Time: 5 seconds
• Maximum Tool Diameter: 120 mm (4.7")
• Maximum Tool Weight: 8 kg (17.6 lbs)
• Control: Makino Professional 6 (graphical touch-screen GUI)
• Proprietary Motion/Servo: SGI.5 (Super Geometric Intelligence) for cycle-time reduction
• Thermal/Accuracy Features: core-cooled under-race lubrication system; twin shield-style splash guards
