3-axis CNC machining center V77 (50 Taper)

verticalCAT50HSK-A 100

Overview

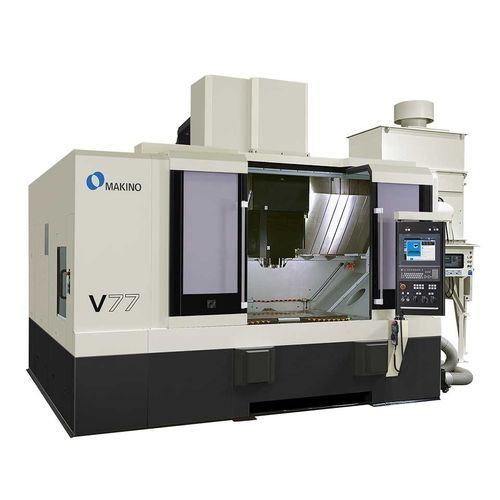

The V77 vertical machining center has been specifically designed to minimize thermal distortion for part precision and enhance higher quality finishes on die/mold output.

Thermal and Accuracy Features
The V77 provides environmentally controlled machine accuracy enhancements, such as Makino’s core-cooled, under-race lubrication system, which minimizes spindle distortion, and twin shield-style splash guards to reduce the effect of temperature change in the factory.

Applications
The V77 (50 Taper) machine is best suited for machining large and medium-sized die / mold and precision parts which require micron-level accuracy and outstanding surface finishes. The V77 can rough and finish hardened steel cavities/cores more efficiently and at lower cost than general-purpose machines.

Spindle & Tooling
The machine is equipped with a CAT50-taper, 12,000 rpm spindle, and can be configured with an optional HSK-A100 interface or an optional HSK-A100, 18,000 rpm spindle. The standard 30-tool magazine can be optionally expanded to 40- or 60-tool configurations.

Control & Software
Outfitted with the Makino Professional 6 control, providing a stable, secure platform with an operator-friendly graphical user interface (GUI). The control offers large color touch-sensitive, on-screen, menu-driven applications with common PC-style functions (cut, paste, copy, find, replace, etc.) rarely available on machine tool controls.

Performance Technologies
Advanced data management technology and Makino’s proprietary, next-generation Super Geometric Intelligence (SGI.5) servo control reduce machining cycle times on dies, complex cavities and cores by as much as 40 percent compared to many other control technologies.

Table (machine envelope)
Table: 1,400 x 700 mm
X: 1,200 mm Y: 700 mm Z: 650 mm

Technical specifications

• Spindle RPM: 12,000
• Spindle Taper: CAT50 (HSK-A100 optional)
• Rapid Traverse: 20,000 mm/min
• Cutting Feedrate: 20,000 mm/min
• Maximum Workpiece (metric): 1,400 x 700 x 550 mm
• Maximum Payload: 2,500 kg
• ATC Capacity: 30 (40 optional)
• Tool-to-Tool Time: 5 secs
• Maximum Tool Diameter: 145 mm
• Maximum Tool Weight: 20 kg
• Optional ATC Capacity: Yes
