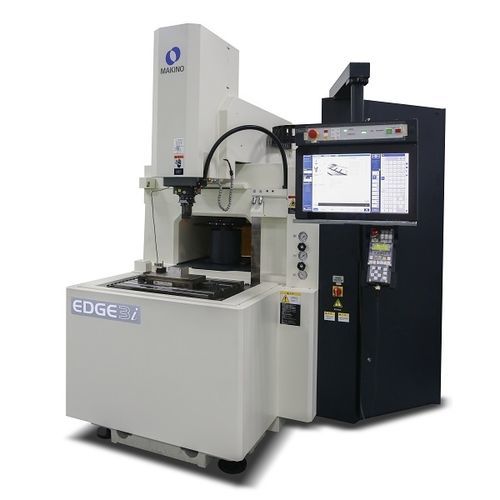

Die sinking electrical discharge machine EDGE2i

sinkerhigh-accuracyprecision

Overview
The EDGE2i is a sinker EDM machine designed for high-precision sinker EDM operations in industrial production environments. It integrates Makino generator and process technologies to deliver stable machining, reduced electrode wear and consistent surface metallurgy.

Design & Features
The machine features a compact footprint with the dielectric reservoir integrated into the base casting for improved thermal stability. Standard equipment includes a dielectric chiller, a stationary work table for enhanced positional accuracy and a 4-sided programmable rise-and-fall work tank to improve operator access and setup flexibility. The machine is configured for safe unattended operation with an integrated flame sensor and fire suppression. An ATC (Automatic Tool Change) unit is integrated under the X/Y axes to extend unattended cycles.

Control and Operation
EDGE2i uses Hyper-i Control with a 24" HD touchscreen and an advanced handbox with LED display and Emergency Stop. The control provides integrated support content, tutorial Project mode and operator-friendly navigation to simplify programming, setup and diagnostics for operators at varying skill levels.

Key technologies

• SuperSpark4 generator
• IES (Intelligent Expert System)
• SuperSurface and SuperEdge generator technologies
• Intelligent adaptive power and jump controls
• Dielectric reservoir integrated into base casting (improved thermal stability)
• Standard dielectric chiller
• Stationary work table construction
• 4-sided programmable rise-and-fall work tank
• Integrated ATC under X/Y axes for extended unattended operation
• Integrated flame sensor and fire suppression system

Technical specifications (metric)
Table: 500 x 350 mm; X: 300 mm Y: 250 mm Z: 250 mm
Rapid traverse: 5,000 mm/min
Maximum workpiece weight: 500 kg
ATC capacity: 4, 8, 16
Tank size: 650 x 450 x 300 mm
Drop tank: Yes
Max electrode weight: 50 kg
Max available amperage: 40A (80A option)

Technical specifications (imperial)
Table: 19.7" x 13.8"; X: 11.8" Y: 9.8" Z: 9.8"
Rapid traverse: 197 ipm
Maximum workpiece weight: 1,100 lbs
ATC capacity: 4, 8, 16
Tank size: 25.6" x 17.7" x 11.8"
Drop tank: Yes
Max electrode weight: 110 lbs
Max available amperage: 40A (80A option)

Specifications summary

• Model: EDGE2i
• Machine type: Sinker EDM
• Table (metric): 500 x 350 mm
• Stroke (metric): X 300 mm, Y 250 mm, Z 250 mm
• Rapid traverse: 5,000 mm/min (197 ipm)
• Maximum workpiece weight: 500 kg (1,100 lbs)
• ATC capacity options: 4, 8, 16
• Tank size (metric): 650 x 450 x 300 mm (25.6" x 17.7" x 11.8")
• Drop tank: Yes
• Maximum electrode weight: 50 kg (110 lbs)
• Max available amperage: 40A standard (80A optional)
• Standard features: integrated dielectric reservoir in base casting, dielectric chiller, stationary work table, 4-sided programmable rise/fall work tank, integrated ATC, flame sensor and fire suppression
• Control: Hyper-i Control with 24" HD touchscreen and advanced handbox; Project tutorial mode and integrated support content
• Generator & process tech: SuperSpark4, IES, SuperSurface, SuperEdge
