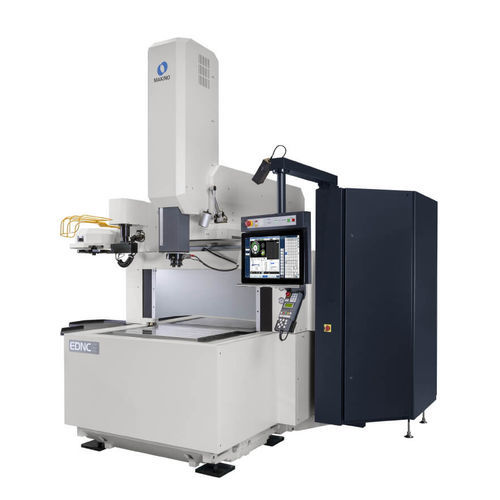

Die sinking electrical discharge machine EDNC6

sinkerhigh-speedwith electrode changer

Overview
The EDNC6 sinker EDM delivers larger X/Y/Z strokes and an expanded work tank compared with the EDAF series. Standard EDNC6 machines use a three-sided programmable rise-and-fall work tank positioned below table level to process workpieces up to 1,000 × 750 mm (39” × 29”). A wide-tank option with a programmable front door supports larger parts up to 1,400 × 900 mm (55” × 35”). The design provides direct access to the work zone and a stationary worktable for faster setups and easier process monitoring. The dielectric reservoir is integrated into the base casting to improve thermal stability and reduce floor footprint.

Features
Control: Hyper-i control system with HyperCut and SuperSpark™ IV power technologies. Interface: large high-definition touch screen with graphical menus and integrated on-board digital manuals. Support: E-Tech Doctor help functions and an e-learning training system for operator reference. Options: external automatic tool changer (ATC) mounted outside the work tank to preserve full machine stroke. Mechanical: available HS-Rib Z-axis configuration with core-cooled ball screw for reduced roughing times on small electrode details; jump motion up to 20 m/min with 1.5G acceleration.

Technical specifications (summary table)
Table: 800 x 550 mm
X: 650 mm Y: 450 mm Z: 350 mm (option 500 mm)
Rapid traverse: 5,000 mm/min
Maximum workpiece weight: 1,500 kg
ATC capacity: 16 or 32 tools
Tank size: 1,100 x 750 x 450 mm (wide tank option supports up to 1,400 x 900 mm parts)
Maximum electrode weight: 100 kg
Max available amperage: 60 A to 240 A

Caractéristiques / spécifications techniques

• Table dimensions (metric): 800 x 550 mm
• Travel (metric): X = 650 mm; Y = 450 mm; Z = 350 mm (option 500 mm)
• Rapid traverse: 5,000 mm/min (197 ipm)
• Maximum workpiece weight: 1,500 kg (3,307 lbs)
• ATC (automatic tool changer) capacity: 16 or 32 tools
• Tank size (metric): 1,100 x 750 x 450 mm (wide tank option supports up to 1,400 x 900 mm parts)
• Maximum electrode weight: 100 kg (220 lbs)
• Max available amperage: 60 A to 240 A
• Control system: Hyper-i with HyperCut and SuperSpark™ IV technologies; integrated digital manuals, E-Tech Doctor help, and e-learning
• Optional HS-Rib Z-axis: up to 20 m/min jump motion, 1.5G acceleration, core-cooled ball screw
• Dielectric reservoir integrated into base casting for improved thermal stability
