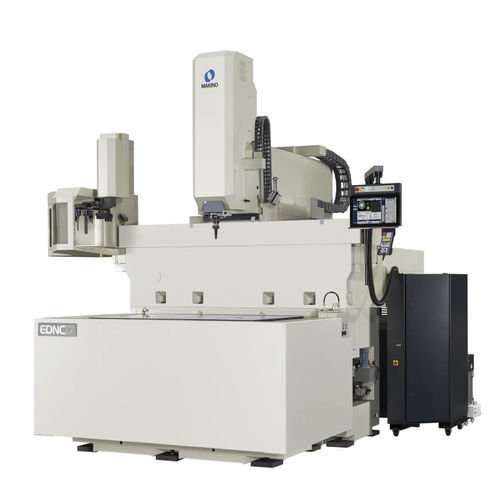

Die sinking electrical discharge machine EDNC17

SEDMhigh-accuracyhigh-speed

Overview
The Makino EDNC17 is a sinker EDM machine designed to handle large die and mold workpieces with extended X/Y strokes and a generous work tank area. The unit combines a stationary work table and an integrated dielectric reservoir in the base casting to reduce footprint and improve thermal stability for consistent accuracy. A 4-sided programmable rise & fall work tank provides excellent access for loading/unloading large parts and reduces automation requirements. The machine accommodates parts up to 10,000 kg or as large as 2,500 × 1,600 mm.

Z-Axis, ATC and Work Performance
The EDNC17 uses Makino’s HS-Rib high-speed Z-Axis with jump speeds to 20 m/min and 1.0G acceleration, suitable for rib electrode machining and capable of significantly reducing cycle times. The Z-axis includes a core-cooled ball screw with a dedicated closed-loop chiller to maintain depth-control accuracy across the full 800 mm travel. Automatic tool change (ATC) options are available (8, 16, 32) and are mounted external to the work tank to avoid limiting stroke or processing capability.

Control and Generator Technologies
Configured with SuperSpark IV and HyperCut generator technologies and Makino’s Hyper-i control, the EDNC17 features a graphical interface on a large 24"-class hi-definition touchscreen with intuitive, smart-device-like operation. On-machine support includes EDM Assist digital manuals and video tutorials plus the E-Tech Doctor function for graphical tuning of machining conditions.

Technical Specifications (Metric)
Table: 2,000 x 1,350 mm; X: 1,700 mm Y: 1,150 mm Z: 800 mm
Rapid Traverse: 5,000 mm/min
Maximum Workpiece Weight: 10,000 kg
ATC Capacity: 8, 16, 32
Tank Size: 2,500 x 1,600 x 800 mm
Max Electrode Weight: 100 kg
Max Available Amperage: 60A ~ 240A

Technical Specifications (Imperial)
Table: 78.7" x 53.2"; X: 66.9" Y: 45.3" Z: 31.5"
Rapid Traverse: 197 ipm
Maximum Workpiece Weight: 22,046 lbs
ATC Capacity: 8, 16, 32
Tank Size: 98.4" x 63.0" x 31.5"
Max Electrode Weight: 220 lbs
Max Available Amperage: 60A ~ 240A

Key features / technical data

• Model: EDNC17
• Manufacturer / Brand: Makino
• Table (metric): 2,000 x 1,350 mm
• Table (imperial): 78.7" x 53.2"
• X axis stroke: 1,700 mm (66.9")
• Y axis stroke: 1,150 mm (45.3")
• Z axis stroke: 800 mm (31.5")
• Rapid traverse: 5,000 mm/min (197 ipm)
• Maximum workpiece weight: 10,000 kg (22,046 lbs)
• Tank size: 2,500 x 1,600 x 800 mm (98.4" x 63.0" x 31.5")
• Max electrode weight: 100 kg (220 lbs)
• ATC capacity options: 8, 16, 32 (external to work tank)
• Max available amperage: 60A ~ 240A
• Z-Axis: HS-Rib high speed Z-Axis, jump speeds up to 20 m/min, 1.0G acceleration
• Z-Axis travel: 800 mm (31.5") with core-cooled ball screw and dedicated closed-loop chiller
• Generators: SuperSpark IV and HyperCut
• Control: Hyper-i control system with 24" class hi-definition touch screen, EDM Assist digital manuals, video tutorials and E-Tech Doctor support tools
• Design: Stationary work table, integrated dielectric reservoir in base casting for enhanced thermal stability
• Max part accommodation (examples): parts up to 22,000 lbs or as large as 2,500 x 1,600 mm
