Sinker electrical discharge machine EDNC15

high-speedhigh-productivityCNC

Overview

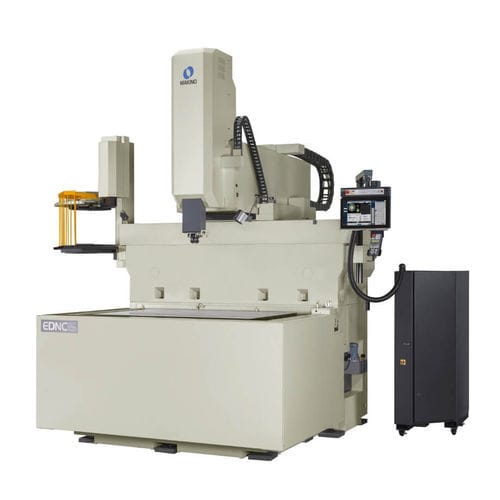

The EDNC15 is a sinker EDM designed to accommodate large, heavy workpieces while delivering outstanding accuracy through a robust stationary work table construction and enhanced thermal stability. The machine integrates the dielectric reservoir into the base casting to reduce footprint and to support heavy parts up to 10,000 kg. The EDNC15 offers ATC (automatic tool changer) options to increase unattended machining time and features a 4-sided programmable rise & fall work tank for easy access to the work zone and simplified robot automation integration.

Control and EDM technologies
The EDNC15 features Makino’s Hyper-i control system with an intuitive graphical hi-definition 24" class touch screen. Hyper-i enables advanced on-machine capabilities including embedded digital EDM assist manuals and the E‑Tech Doctor help function. The machine uses advanced machining technologies such as SuperSpark™ IV and HyperCut to achieve fast cycle times and high productivity.

Product highlights and options

• Optional external ATC system (ATC located externally from the work tank so as not to impose stroke or processing limits).
• Optional HS‑Rib high-speed Z‑axis for up to 60% reduction in machining times on small details; includes dedicated closed‑loop chiller and core‑cooled ball screw Z‑axis permitting high‑speed jump motions up to 20 m/min with 800 mm travel.
• 4‑sided programmable rise & fall work tank simplifies loading/unloading and robot integration.
• Integrated dielectric reservoir in base casting for improved thermal stability and reduced footprint.

Technical specifications (table — Metric)
Table: 2,000 x 1,000 mm
X: 1,500 mm Y: 700 mm Z: 500 mm (800 mm)
Rapid Traverse: 5,000 mm/min
Maximum Workpiece Weight: 10,000 kg
ATC Capacity: 8, 16, 32
Tank Size: 2,500 x 1,400 x 800 mm
Max Electrode Weight: 100 kg
Max Available Amperage: 60A ~ 240A

Technical specifications (table — English)
Table: 78.7" x 39.4"
X: 59.0" Y: 27.6" Z: 19.7" (31.5")
Rapid Traverse: 197 ipm
Maximum Workpiece Weight: 22,046 lbs
ATC Capacity: 8, 16, 32
Tank Size: 98.4" x 55.1" x 31.5"
Max Electrode Weight: 220 lbs
Max Available Amperage: 60A ~ 240A

Caractéristiques / spécifications techniques

• Model: EDNC15
• Machine type: Sinker EDM
• Table size (metric): 2,000 x 1,000 mm
• Table size (imperial): 78.7" x 39.4"
• Stroke (metric, tech-spec table): X 1,500 mm, Y 700 mm, Z 500 mm (option: 800 mm)
• Stroke (imperial, paragraph): X 59.0", Y 27.6", Z 19.7" (option: 31.5")
• Rapid traverse: 5,000 mm/min (197 ipm)
• Maximum workpiece weight: 10,000 kg (22,046 lbs)
• ATC capacity options: 8, 16, 32
• Tank size (metric): 2,500 x 1,400 x 800 mm
• Tank size (imperial): 98.4" x 55.1" x 31.5"
• Max electrode weight: 100 kg (220 lbs)
• Max available amperage: 60A – 240A
• Control: Makino Hyper-i control with 24" class touch screen, embedded EDM assist digital manuals and E‑Tech Doctor
• EDM technologies: SuperSpark™ IV, HyperCut
• Optional HS‑Rib high‑speed Z‑axis: up to 20 m/min jump motions, 800 mm travel, includes closed‑loop chiller and core‑cooled ball screw Z‑axis
• Integrated dielectric reservoir in base casting for thermal stability
