Die sinking electrical discharge machine EDNC10

high-accuracyhigh-speedprecision

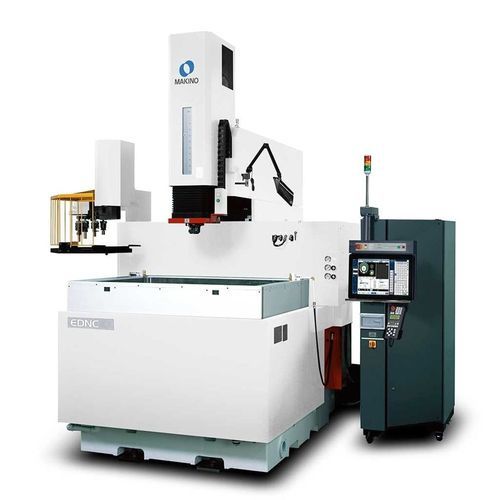

Overview The EDNC10 is a die-sinker EDM offering extended X/Y/Z stroke capacity in standard and wide-tank configurations. The standard tank accepts parts up to 1,500 x 1,100 mm (59.1" x 43.3") while the wide-tank option accommodates parts up to 2,000 x 1,100 mm (78.7" x 43.3"). The machine features a three-sided programmable rise-and-fall work tank and a stationary worktable that give unobstructed access to the tank. The dielectric reservoir is integrated into the base casting to save floor space and enhance thermal stability. Its rigid structure enables accurate processing of heavy workpieces up to 3,000 kg (6,614 lbs).

Control & Software The EDNC10 is delivered with the Hyper-i control system, including a large high-definition touchscreen, streamlined graphical flow and an intuitive operator interface. Key functions include HyperCut, SuperSpark™ IV, on-board digital manuals and E-Tech Doctor diagnostics to support setup and process optimization.

Performance Options

• HS-Rib high-speed Z-axis: jump motions up to 20 m/min with 1.5G acceleration and ball-screw core cooling for improved depth control and cycle time reduction (up to ~60% for some operations).
• Optional ATC (automatic tool changer) configurations for increased unattended operation and full utilization of the machine stroke.
• Tank configuration options to increase part capacity (standard vs. wide-tank).

Design & Capabilities

• Three-sided programmable rise-and-fall work tank for improved access.
• Stationary worktable for rigidity and machining accuracy.
• Integrated dielectric reservoir in base casting to improve thermal stability and reduce shop floor footprint.
• Capable of handling heavy workpieces up to 3,000 kg (6,614 lbs).

Technical specifications

• Table / stroke: Table 1,300 x 950 mm — X: 1,000 mm, Y: 600 mm, Z: 500 mm.
• Tank size: Standard 1,500 x 1,100 x 500 mm (59.1" x 43.3" x 19.7"); wide-tank option accommodates parts up to 2,000 x 1,100 mm (78.7" x 43.3").
• Rapid traverse: 5 m/min (197"/min).
• Maximum workpiece weight: 3,000 kg (6,614 lbs).
• ATC capacity: 8 or 16 (optional automatic tool changer configurations).
• Maximum electrode weight: 100 kg (220 lbs).
• Available amperage: 60 A – 240 A.
• Control: Hyper-i control system with HyperCut and SuperSpark™ IV; on-board digital manuals and E‑Tech Doctor; large hi‑definition touchscreen.
• High-speed option: HS-Rib Z-axis — jump motions to 20 m/min with 1.5G acceleration; ball-screw core cooling for thermal stability and depth control.
