Ball valve

manualflow controlflange

Overview

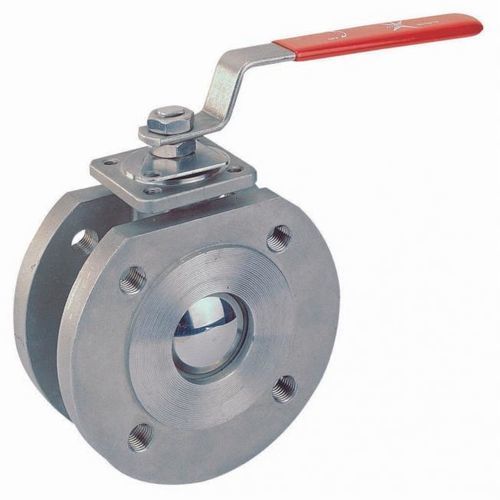

A compact wafer-type full-bore ball valve rated to ANSI Class 150 and PN16/40. Lightweight and space-saving in CF8M stainless steel, available in three model families covering different sizes, pressure ratings and certifications.

Models

• Standard — Wafer type, compact, full port; available with 30/60/90° V-port ball for flow control; optional NACE MR0175 on request; sizes 1/2" ~ 6"; pressure ANSI Class 150, PN16/40; body material CF8M; seats PTFE/RTFE standard or other options on request.
• Series F98 — Series F98, Fire Safe: Wafer type, Direct Mount, fire safe, full port; conforms to B16.34; sizes 1/2" ~ 4"; pressure PN16; body materials 1.4408 / 1.0619; seats PTFE/RTFE standard or other options on request.
• Series F98A — Series F98A, ISO 15848-1: Wafer type, full port, ISO 15848-1 certified; sizes 1/2" ~ 4"; pressure PN10/40; body materials 1.4408 / 1.0619; seats PTFE/RTFE standard or other options on request.

Models comparison (table)
Model | Size | Pressure Rating | Body | Seats | Design
Standard | 1/2" ~ 6" | ANSI Class 150, PN16/40 | CF8M | PTFE/RTFE (standard) or other options | Wafer type, compact, full port, optional 30/60/90° V-port, optional NACE MR0175
Series F98 | 1/2" ~ 4" | PN16 | 1.4408 / 1.0619 | PTFE/RTFE (standard) or other options | Wafer type, Direct Mount, fire safe, conforms to B16.34
Series F98A | 1/2" ~ 4" | PN10/40 | 1.4408 / 1.0619 | PTFE/RTFE (standard) or other options | Wafer type, full port, ISO 15848-1 certified

Technical specifications

• Type: Wafer-type flanged ball valve, full bore / full port
• Materials: Body CF8M (stainless steel); alternative materials 1.4408 / 1.0619 where specified
• Sizes: 1/2" ~ 6" (some series limited to 1/2" ~ 4")
• Pressure ratings: ANSI Class 150; PN16/40; PN10/40 depending on series
• Seats: PTFE / RTFE standard; other seat options available on request
• Design features: Compact wafer design; Direct Mount option (Series F98); fire-safe construction (Series F98); V-port ball options (30/60/90°) for flow control
• Certifications / standards: Conforms to B16.34 (where specified); ISO 15848-1 certified for Series F98A; NACE MR0175 available on request
• Variants: Three model families — Standard, Series F98 (Fire Safe), Series F98A (ISO 15848-1)
