Ball valve

pneumaticpressure-reducingflow control

Product overview

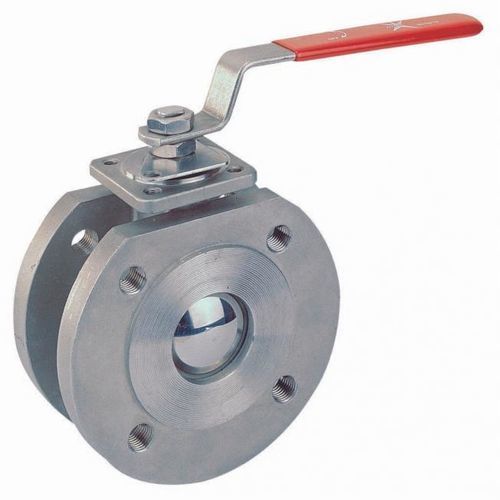

A compact wafer-type full-bore ball valve rated to ANSI Class 150 and PN10/16/40. Lightweight and space-saving, constructed in CF8M stainless steel. Available in multiple designs (Standard, Series F98 fire safe, Series F98A ISO 15848-1 certified) and a range of sizes and pressure ratings. Options include V-port balls (30°/60°/90°) for flow control, PTFE/RTFE seats as standard, and alternative materials or certifications on request.

Available models

• Standard — Wafer type, compact, full port; available with 30°/60°/90° V-port ball for flow control; optional NACE MR0175 on request; sizes 1/2" ~ 6"; pressure ANSI Class 150, PN16/40; body CF8M; seats PTFE/RTFE standard (other options on request).
• Series F98 — Series F98, Fire Safe; wafer type, Direct Mount, fire safe, full port; conforms to B16.34; sizes 1/2" ~ 4"; pressure PN16; body materials 1.4408 / 1.0619; seats PTFE/RTFE standard (other options on request).
• Series F98A — Series F98A, ISO15848-1; wafer type, full port, ISO 15848-1 certified; sizes 1/2" ~ 4"; pressure PN10/40; body materials 1.4408 / 1.0619; seats PTFE/RTFE standard (other options on request).

Models comparison (table)
Model | Size | Pressure Rating | Body | Seats | Design
Standard | 1/2" ~ 6" | ANSI Class 150, PN16/40 | CF8M | PTFE/RTFE standard (options available) | Wafer type, compact, full port, V-port option, optional NACE MR0175
Series F98 | 1/2" ~ 4" | PN16 | 1.4408 / 1.0619 | PTFE/RTFE standard (options available) | Wafer type, Direct Mount, fire safe, conforms to B16.34
Series F98A | 1/2" ~ 4" | PN10/40 | 1.4408 / 1.0619 | PTFE/RTFE standard (options available) | Wafer type, full port, ISO 15848-1 certified

Technical specifications

• Design: Wafer type, full port; compact, space-saving construction.
• V-Port option: 30°, 60°, 90° V-port ball available for flow control (standard on specified models).
• Sizes: ranges indicated per model — Standard: 1/2" ~ 6"; Series F98 / F98A: 1/2" ~ 4".
• Pressure ratings: ANSI Class 150; PN10, PN16, PN40 depending on model/variant.
• Body materials: CF8M (Standard), 1.4408 / 1.0619 (Series F98 / F98A).
• Seats: PTFE / RTFE standard; alternative seat materials available on request.
• Standards & certifications: Conforms to B16.34 (where specified); Series F98A certified to ISO 15848-1; optional NACE MR0175 on request.
• Fire safe options: Series F98 designated fire safe (Direct Mount fire safe design).
• Typical applications: flanged connections where a compact wafer-style full bore ball valve is required with options for fugitive emission certification and flow control.
• Variants: 3 models available (Standard, Series F98, Series F98A).
