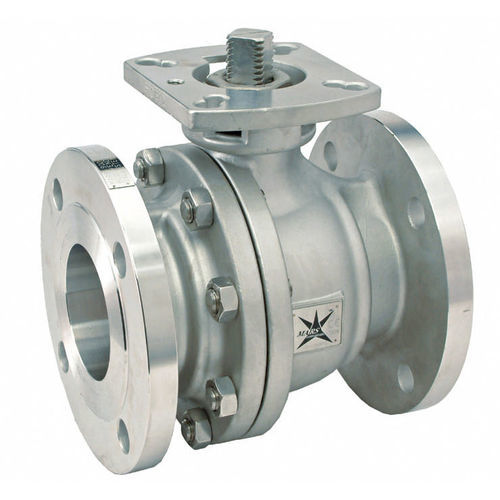

Ball valve 90D series

manualflangeflange-mount

Overview

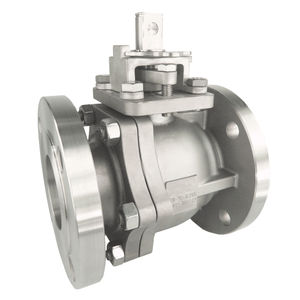

Series 90D is a flanged ball valve range of 184 models offering full-port configurations, multiple pressure classes and body materials. Valves are supplied flanged and prepared for direct actuator mounting via ISO 5211 / DIN 3337 square stem. Optional fire‑safe variants and a choice of handle or handle‑less (prepared for actuation) are available.

Key features

• Pressure classes: ANSI 300, ANSI 150, PN10/40 & PN16
• Full-port (full bore) ball valve design
• Body materials: Stainless Steel (incl. CF8M), Carbon Steel, WCB
• Mounting: Flanged and direct‑mount; ISO 5211 / DIN 3337 square stem
• Operation: Supplied with handle or without handle for direct actuator mounting
• Sizes: 1/2\", 3/4\", 1\", 1 1/4\", 1 1/2\", 2\", 2 1/2\", 3\", 4\", 6\" and intermediate sizes across the 184-model range
• Optional fire‑safe certified variants

Versions / Options

• V90D-2F series: Flanged, ANSI-rated; fire-safe variants available

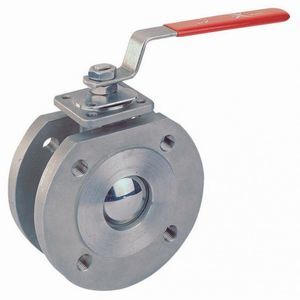

• Handle options: Supplied with handle or without handle (for direct actuation)

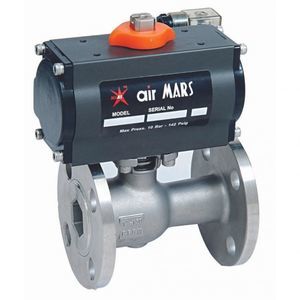

• Actuation: Prepared for direct actuator mounting via ISO 5211 / DIN 3337 square stem
• Materials and pressure classes selectable per SKU

Representative product table (excerpt)
SKU | Size | Port | Body | Design | Mount | Price (GBP)
V90D-2F-1-2IN-STAINLESS-STEEL-W-O-HANDLE | 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £89.94
V90D-2F-1-2IN-STAINLESS-STEEL-W-HANDLE | 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £92.55
V90D-2F-1-2IN-CARBON-STEEL-W-O-HANDLE | 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £81.16
V90D-2F-1-2IN-CARBON-STEEL-W-HANDLE | 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £83.78
V90D-2F-3-4IN-STAINLESS-STEEL-W-O-HANDLE | 3/4\" | Full | Stainless Steel | Full | Flanged, direct mount | £113.50
V90D-2F-3-4IN-STAINLESS-STEEL-W-HANDLE | 3/4\" | Full | Stainless Steel | Full | Flanged, direct mount | £116.12
V90D-2F-3-4IN-CARBON-STEEL-W-O-HANDLE | 3/4\" | Full | Carbon Steel | Full | Flanged, direct mount | £102.41
V90D-2F-3-4IN-CARBON-STEEL-W-HANDLE | 3/4\" | Full | Carbon Steel | Full | Flanged, direct mount | £104.87
V90D-2F-1IN-STAINLESS-STEEL-W-O-HANDLE | 1\" | Full | Stainless Steel | Full | Flanged, direct mount | £149.07
V90D-2F-1IN-STAINLESS-STEEL-W-HANDLE | 1\" | Full | Stainless Steel | Full | Flanged, direct mount | £151.69
V90D-2F-1IN-CARBON-STEEL-W-O-HANDLE | 1\" | Full | Carbon Steel | Full | Flanged, direct mount | £134.44
V90D-2F-1IN-CARBON-STEEL-W-HANDLE | 1\" | Full | Carbon Steel | Full | Flanged, direct mount | £137.06
V90D-2F-1-1-2IN-STAINLESS-STEEL-W-O-HANDLE | 1 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £300.45
V90D-2F-1-1-2IN-STAINLESS-STEEL-W-HANDLE | 1 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £306.00
V90D-2F-1-1-2IN-CARBON-STEEL-W-O-HANDLE | 1 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £254.10
V90D-2F-1-1-2IN-CARBON-STEEL-W-HANDLE | 1 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £259.80
V90D-2F-2IN-STAINLESS-STEEL-W-O-HANDLE | 2\" | Full | Stainless Steel | Full | Flanged, direct mount | £342.19
V90D-2F-2IN-STAINLESS-STEEL-W-HANDLE | 2\" | Full | Stainless Steel | Full | Flanged, direct mount | £347.73
V90D-2F-2IN-CARBON-STEEL-W-O-HANDLE | 2\" | Full | Carbon Steel | Full | Flanged, direct mount | £289.67
V90D-2F-2IN-CARBON-STEEL-W-HANDLE | 2\" | Full | Carbon Steel | Full | Flanged, direct mount | £295.37
V90D-2F-2-1-2IN-STAINLESS-STEEL-W-O-HANDLE | 2 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £534.23
V90D-2F-2-1-2IN-STAINLESS-STEEL-W-HANDLE | 2 1/2\" | Full | Stainless Steel | Full | Flanged, direct mount | £539.77
V90D-2F-2-1-2IN-CARBON-STEEL-W-O-HANDLE | 2 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £466.47
V90D-2F-2-1-2IN-CARBON-STEEL-W-HANDLE | 2 1/2\" | Full | Carbon Steel | Full | Flanged, direct mount | £472.16
V90D-2F-3IN-STAINLESS-STEEL-W-O-HANDLE | 3\" | Full | Stainless Steel | Full | Flanged, direct mount | £709.48

Technical specifications

• Range name: Series 90D - Flanged ball valve
• Models available: 184 models (various sizes, materials and options)
• Design: Full port / full bore ball valve
• Pressure ratings: ANSI 300, ANSI 150, PN10/40, PN16
• Materials: Stainless Steel (incl. CF8M), Carbon Steel, WCB
• Mounting and operation: Flanged, direct mount; ISO 5211 / DIN 3337 square stem; with or without handle
• Pricing: Variant pricing shown in GBP on the listing
