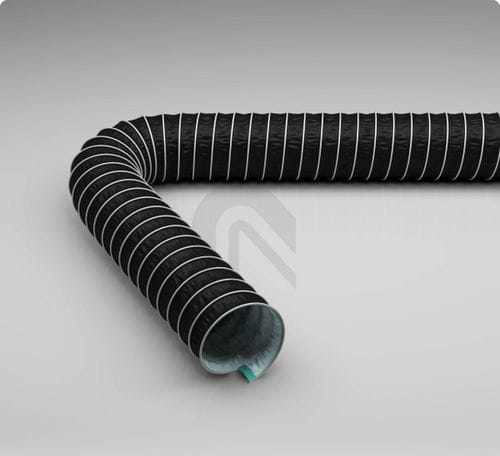

Gas hose Master-Clip PTFE H
polyesterPTFEfiberglass

gas hose
gas hose
gas hose
Add to favorites
Compare this product


Characteristics

Use
for gas
Material
polyester, PTFE, fiberglass
Applications
cleaning, for the chemical industry, for automotive applications, air conditioning, exhaust, for the pharmaceutical industry, low-pressure, for ventilation, for the plastics industry
Other characteristics
chemical-resistant, weather-resistant, UV-resistant, heat-resistant, vibration-resistant, rugged, non-adhesive, for corrosive fluids, small bend radius, spiral wire
Inner diameter

Max.: 900 mm
(35.433 in)

Min.: 38 mm
(1.496 in)

Pressure

Max.: 0.94 bar
(13.634 psi)

Min.: 0.016 bar
(0.232 psi)

Temperature

Max.: 175 °C
(347 °F)

Min.: -40 °C
(-40 °F)

Delivered length

Max.: 25 m
(82'00" )

Min.: 3 m
(9'10" )

Description

Suction and blower hose for corrosive media up to +175°C Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Material of the inner layer - PTFE foil Execution of the external layer - HYPALON® coating Properties Chemical Properties - good resistance to chemicals, weather-resistant, good ozone resistance, good UV resistance Mechanical Properties - compressible approx. 1:4 Physical Properties - Heat-resistant, cold-resistant Pressure Resistance - moderately pressure resistant Colour - white inside, black outside Other - the material PTFE is harmless to health short-term maximum temperature - peaks to +190° C Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Automotive, Plant & Mechanical Engineering, Ventilation & air-conditioning, Chemistry, Surface Technology, Waste disposal & cleaning technology, Plastics Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
