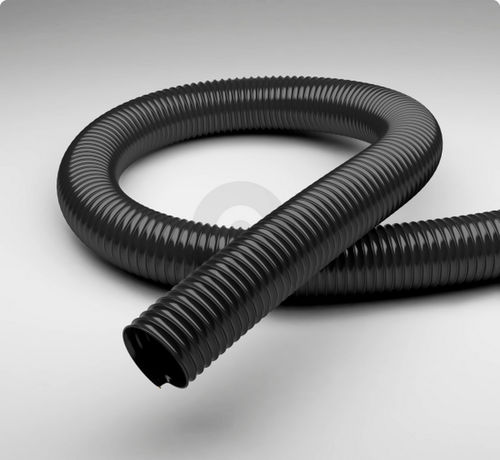

Gas hose Master-PE L EL
for powdersfor dustfor oil mist

gas hose
gas hose
Add to favorites
Compare this product


Characteristics

Use
for gas, for powders, for dust, for oil mist
Material
PE-X
Applications
suction, transport, construction, conveying, for food industry applications, for suction units, for pharmaceutical applications
Other characteristics
with smooth inner surface, flexible, chemical-resistant, lightweight, oil-resistant, UV-resistant, ATEX, electrically-conductive, halogen-free, for aggressive products, spiral wire
Inner diameter

Max.: 300 mm
(11.811 in)

Min.: 25 mm
(0.984 in)

Outer diameter

Max.: 310 mm
(12.205 in)

Min.: 31 mm
(1.22 in)

Pressure

Max.: 1.39 bar
(20.16 psi)

Min.: 0.11 bar
(1.595 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -35 °C
(-31 °F)

Delivered length

5 m, 10 m, 25 m
(16'04" , 32'09" , 82'00" )

Description

PE Suction & Transport Hose, lightweight, highly flexible, electroconductive Type of construction - Profile extruded hose with metal spiral Material of the spiral - Spring steel Execution of the wall - made of electrically conductive material, made of specified material, Wall thickness between the spirals approx. 0.7 mm Material of the wall - Polyethylene Specifications of the wall - Surface resistance RO < 10⁴ Ohm Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free Pressure Resistance - moderately pressure resistant Colour - black Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Bulk & Construction, Chemistry, Food & Pharma Customizing Options optional item modification (on request) - other nominal widths, other colours, with customer-specific imprint
