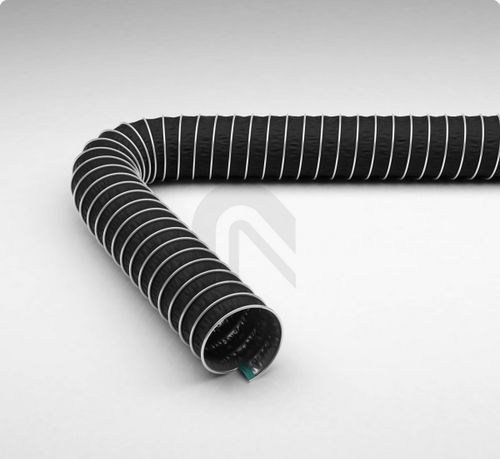

Gas hose Master-Clip PTFE H EL

PTFEcleaningfor the chemical industry

Suction & Blower hose for corrosive media up to +175°C, electroconductive, double-layered Type of construction - Spiral hose with clamping profile Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Material of the inner layer - PTFE foil Specifications of the inner layer - Surface resistance RO < 10⁶ Ohm Execution of the external layer - HYPALON® coating Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - good resistance to chemicals, weather-resistant, good UV resistance, good ozone resistance Mechanical Properties - compressible approx. 1:4 Physical Properties - Heat-resistant, cold-resistant Pressure Resistance - moderately pressure resistant Colour - black short-term maximum temperature - peaks to +190° C Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Automotive, Plant & Mechanical Engineering, Ventilation & air-conditioning, Chemistry, Surface Technology, Waste disposal & cleaning technology, Plastics Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
