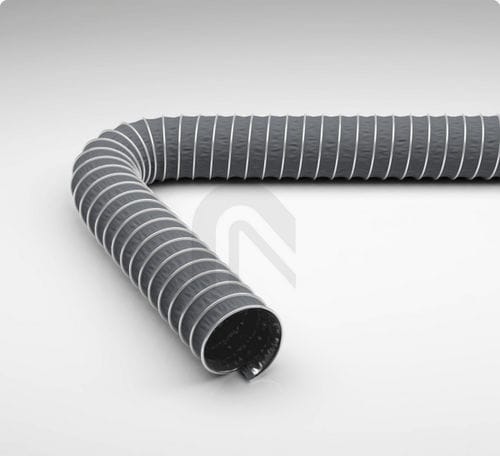

Air hose Master-Clip PTFE S EL

PTFEfor the chemical industryconstruction

Suction & Blower hose for corrosive media up to +250°C, electroconductive, double-layered Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - multi-layered and coated Design of the inner layer - made of electrically conductive material Material of the inner layer - PTFE foil Specifications of the inner layer - Surface resistance RO < 10⁶ Ohm Execution of the external layer - Coating in silicone Material of the outer layer - glass fabric Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - good resistance to chemicals, weather-resistant, good UV resistance, good ozone resistance Mechanical Properties - compressible approx. 1:4 Physical Properties - Heat-resistant, cold-resistant Pressure Resistance - moderately pressure resistant Colour - black Other - optimal transport of media because the inside of the hose wall is anti-adhesive short-term maximum temperature - peaks to +270° C Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Plant & Mechanical Engineering, Ventilation & air-conditioning, Bulk & Construction, Chemistry, Surface Technology, Food & Pharma, Plastics, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
