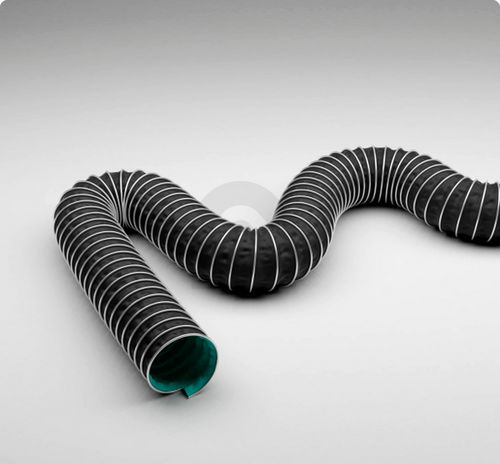

Exhaust gas hose Master-Clip HYPALONfor hot airfabricpolyester
Add to favorites
Compare this product
Characteristics
- Use
- for exhaust gas, for hot air
- Material
- fabric, polyester, chlorosulphonated polyethylene
- Applications
- for suction units, suction, transport, high-temperature, for ventilation, for the paper industry, medium-temperature, construction, conveying, for food industry applications, for the automotive industry, air conditioning, for pharmaceutical applications, low-pressure, for railway application, for the steel industry
- Other characteristics
- chemical-resistant, flexible, lightweight, UV-resistant, microbe-resistant, hydrolysis-resistant, flame-retardant, heat/cold-resistant, fire-resistant, small bend radius, spiral wire
- Inner diameter
Min.: 38 mm
(1.496 in)Max.: 900 mm
(35.433 in)- Pressure
Min.: 0.016 bar
(0.232 psi)Max.: 0.94 bar
(13.634 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 175 °C
(347 °F)- Delivered length
Min.: 3 m
(9'10" )Max.: 25 m
(82'00" )
Description
Medium and high temperature hose for temperatures up to +175°C
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - coated, HYPALON® coating
Material of the wall - Polyester fabric
Properties
Chemical Properties - very good resistance to chemicals, good ozone resistance, good UV resistance
Mechanical Properties - compressible approx. 1:6
Pressure Resistance - moderately pressure resistant
Colour - outside black, inside green
short-term maximum temperature - peaks to +190
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Automotive, Plant & Mechanical Engineering, Industry, Semiconductor Industry, Ventilation & air-conditioning, Bulk & Construction, Sea & rail transport, Chemistry, Food & Pharma, Plastics, Conveying, lifting & feeding technology, Printing & Paper, Vehicle construction, Metal & Toolmaking
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
