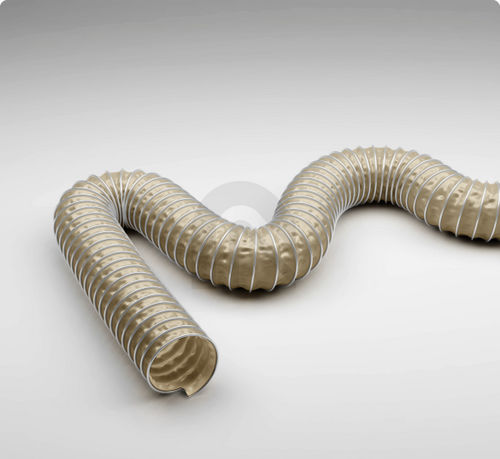

Chemical product hose Master-Clip PTFE PTFE-coatedfiberglasssuction
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products
- Material
- PTFE-coated, fiberglass
- Applications
- suction, for the chemical industry, air conditioning, exhaust, for the pharmaceutical industry, low-pressure, for ventilation, for the plastics industry
- Other characteristics
- chemical-resistant, lightweight, weather-resistant, microbe-resistant, heat-resistant, hydrolysis-resistant, non-adhesive, for corrosive fluids, spiral wire
- Inner diameter
Max.: 900 mm
(35.433 in)Min.: 45 mm
(1.772 in)- Pressure
Max.: 0.87 bar
(12.618 psi)Min.: 0.009 bar
(0.131 psi)- Temperature
Max.: 250 °C
(482 °F)Min.: -150 °C
(-238 °F)- Delivered length
3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )
Description
Suction and blower hose for corrosive media up to +250°C
Type of construction - Spiral hose with clamping profile
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - coated, PTFE coating
Material of the wall - Glass fibre fabric
Properties
Chemical Properties - good resistance to chemicals, weather-resistant
Mechanical Properties - compressible approx. 1:6
Physical Properties - cold-resistant
Pressure Resistance - moderately pressure resistant
Colour - black
Other - the material PTFE is harmless to health, optimal transport of media because the inside of the hose wall is anti-adhesive
short-term maximum temperature - peaks to +270° C
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Plant & Mechanical Engineering, Industry, Ventilation & air-conditioning, Chemistry, Surface Technology, Plastics
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
