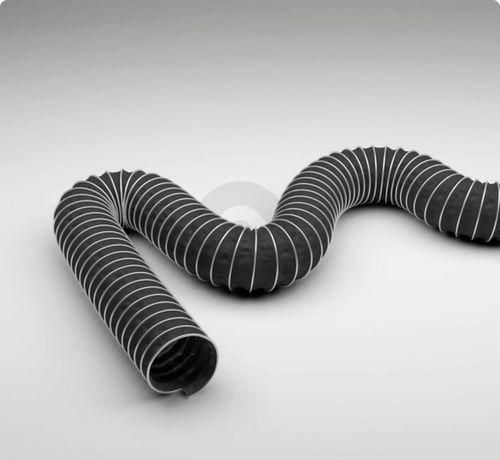

Gas hose Master-Clip VINYL ELfor steamfabricpolyester
Add to favorites
Compare this product
Characteristics
- Use
- for gas, for steam
- Material
- fabric, polyester
- Applications
- suction, for chemical applications, air conditioning, for suction units, low-pressure, for ventilation, for the plastics industry
- Other characteristics
- electrically-conductive, flexible, lightweight, anti-static, microbe-resistant, hydrolysis-resistant, ATEX, explosion-proof, small bend radius, PVC-coated, spiral wire
- Inner diameter
Min.: 50 mm
(1.969 in)Max.: 900 mm
(35.433 in)- Pressure
Min.: 0.016 bar
(0.232 psi)Max.: 0.9 bar
(13.053 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)- Delivered length
Min.: 3 m
(9'10" )Max.: 20 m
(65'07" )
Description
Suction & Blower hose made from PVC coated polyester fabric, electroconductive
Type of construction - Spiral hose with clamping profile
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - made of electrically conductive material, coated, Coating in PVC
Material of the wall - Polyester fabric
Specifications of the wall - Surface resistance RO < 10⁶ Ohm
Properties
Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU
Chemical Properties - atoxic, physiologically harmless, odourless and tasteless, good resistance to aggressive vapours
Mechanical Properties - compressible approx. 1:6
Pressure Resistance - moderately pressure resistant
short-term maximum temperature - peaks to +80°C
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Ventilation & air-conditioning, Chemistry, Plastics
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
