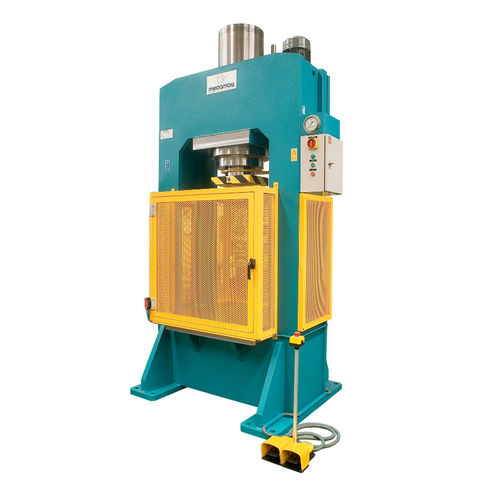

Electro-hydraulic press PDV-100
formingstraight-sidewith fixed table

electro-hydraulic press
electro-hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
electro-hydraulic
Function
forming
Structure
straight-side, with fixed table
Other characteristics
with heating plates, for production
Opening

500 mm, 810 mm (20 in)

Description

- Hydraulic presses MECAMAQ, “PDV series” are designed with heavy-duty frame design, useful for operations with die, mould or tools. These machine series doesn’t include the upper plate. - Hydraulic equipment including 3 speeds (fast approach, work speed and fast return) redundant control valves, decompression valves, safety valves and steel pump with maximum pressure 320bars. - End of the piston rod mechanized to adjustment of tools, lower plate mechanized with “T-slots” DIN 650. - Machine series equipment includes electric limit switches, pressure switch, two-hand safety activation and physical barriers according to EU safety guidelines. - Machine optional equipment available for these models is the following: - Front side protections with doors, photoelectric barriers, machine parameters controlled by means of tactile panel (according to customer requirements), hydraulic cushion and hydraulic ejectors for upper/lower plate, pieces counter and hot plates for temperature applications. - For different dimensions or features, we prepare estimates according to customer specifications. - Available tonnage from 40 to 500 tons. (More powerful are available under demand).

VIDEO

Catalogs
