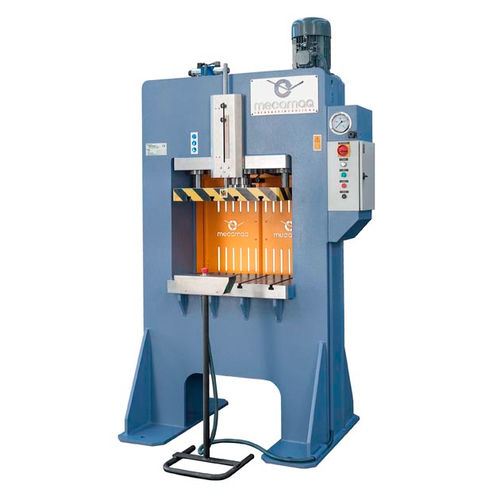

Electro-hydraulic press PDM-100
formingstraight-sidewith fixed table

electro-hydraulic press
electro-hydraulic press
Add to favorites
Compare this product


straight-side, with fixed table
Other characteristics
for production

500 mm, 810 mm (20 in)


- Hydraulic presses MECAMAQ “PDM series” are designed with heavy-duty frame design, useful for operations with die, mould or tools. These kind of machine includes the upper plate. - Hydraulic equipment including 3 speeds (fast approach, work speed and fast return) redundant control valves, decompression valves, safety valves and steel pump with maximum pressure 320bars. - The PDM model includes upper and lower plate mechanized with “T-slots” DIN 650. Upper plate guided by means of 2 or 4 cylindrical columns with bronze sleeves. - Machine series equipment includes electric limit switches, pressure switch, two-hand safety activation and physical barriers according to EU safety guidelines. - Machine optional equipment available for these models is the following: - Front side protections with doors, photoelectric barriers, machine parameters controlled by means of tactile panel (according to customer requirements), hydraulic cushion and hydraulic ejectors for upper/lower plate, pieces counter and hot plates for temperature applications. - For different dimensions or features, we prepare estimates according to customer specifications. - Available tonnage from 40 to 500 tons. (More powerful are available under demand).



No catalogs are available for this product.

See all of MECAMAQ, SL‘s catalogs
