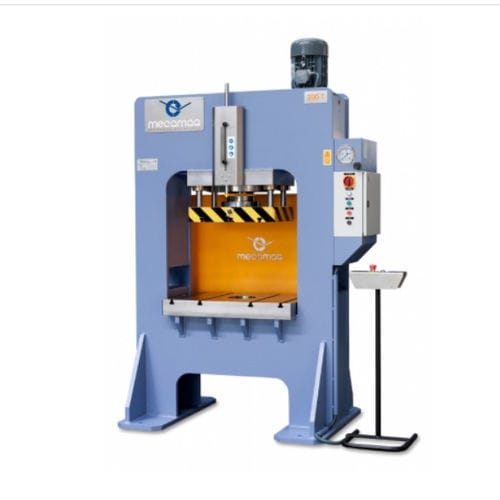

Electro-hydraulic press PDM-200
electricformingfor production

Electro-hydraulic press - PDM-200 - MECAMAQ, SL - electric / forming / for production
Electro-hydraulic press - PDM-200 - MECAMAQ, SL - electric / forming / for production
Electro-hydraulic press - PDM-200 - MECAMAQ, SL - electric / forming / for production - image - 2
Add to favorites
Compare this product

Characteristics

Operation
electro-hydraulic, electric
Function
forming, for production
Applications
panel
Structure
straight-side, frame, with fixed table
Other characteristics
hot
Force

80 tf

Opening

Max.: 710 µm

Min.: 500 µm

Stroke

250 mm
(9.843 in)

Table width

Max.: 500 mm
(20 in)

Min.: 450 mm
(18 in)

Table length

Max.: 700 mm
(28 in)

Min.: 600 mm
(24 in)

Max. pressure

315 bar
(4,569 psi)

Working speed

6 mm/s

Approaching speed

25 mm/s

Hydraulic pump power

4.1 kW

Description

Power (tons) - 80 Stroke (mm) - 250 Guides Ø (mm) - 50 Lower plate (mm) - 700x500 Upper plate (mm) - 600x450 Front opening useable (mm) - 710 Vertical opening useable (mm) - 500 Engine power (HP) - 5,5 Approximation speed (mm/s) - 25 Working speed (mm/s) - 6 Max. pressure (Bar) - 315
