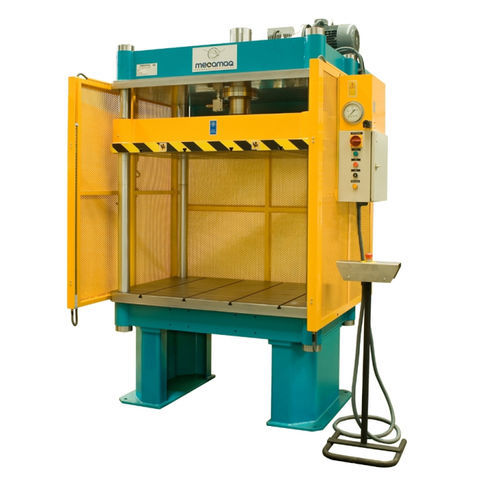

Hydraulic press PHA-30formingdouble4-column
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- double, 4-column
- Other characteristics
- double-action
- Force
400 tf
- Opening
900 mm
(35 in)- Table width
1,000 mm
(39 in)- Table length
1,200 mm
(47 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
3.5 mm/s
- Weight
45,000 kg
(99,208 lb)- Overall length
3,600 mm
(142 in)- Overall width
4,000 mm
(157 in)- Overall height
6,200 mm
(244 in)
Description
The press MECAMAQ type PHA-30, it has a power of 30 Tm, by means of a cylinder of double effect.
The dimensions of the tables are of 1.200 x 1.000 mm between columns, with 4 guides Ø80 mm and tips of bronze.
Hydraulic group with 2 speeds, rapid speed 70 mm x second and speed of work, 23 mm x second.
The regulation of courses of work is for ends of stops and that of pressure for electrical switch.
He has photoelectric barriers of CAT-4.
