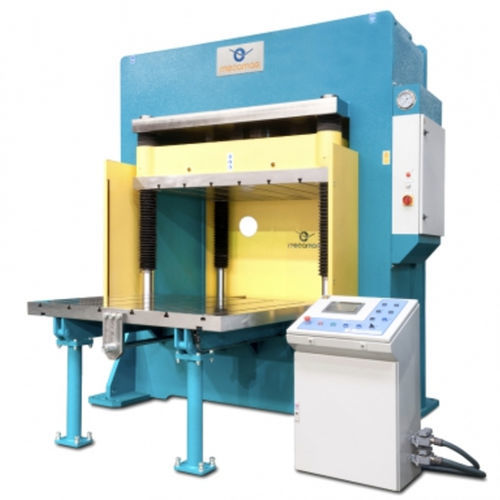

Hydraulic press PHA200R 4817column type
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Structure
- column type
- Force
200 tf
- Opening
900 mm
(35 in)- Stroke
600 mm
(23.622 in)- Max. pressure
320 bar
(4,641 psi)- Working speed
Max.: 10 mm/s
Min.: 1 mm/s
- Weight
15,000 kg
(33,069 lb)- Overall length
2,650 mm
(104 in)- Overall width
2,700 mm
(106 in)- Overall height
3,350 mm
(132 in)
Description
Power (tons) - 200
Columns Ø (mm) - 100
Lower and upper plate (mm) - 1500x1300
Engine power (HP) - 20
Approximation speed (mm/s) - 130
Catalogs
PHA200R 4817
1 Pages
Exhibitions
Meet this supplier at the following exhibition(s):
