Hydraulic press PHA500R 5353
forming4-column

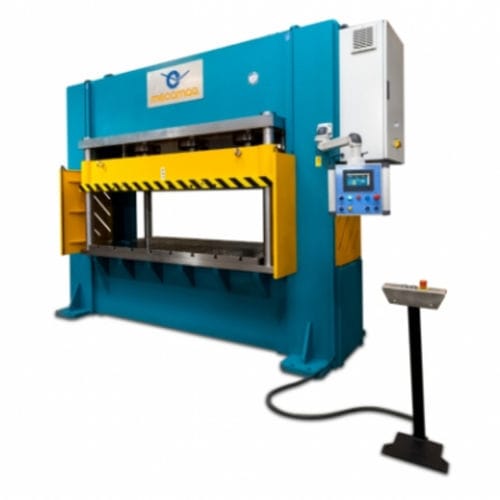

Hydraulic press - PHA500R 5353 - Mécamaq - forming / 4-column
Hydraulic press - PHA500R 5353 - Mécamaq - forming / 4-column
Add to favorites
Compare this product
Go to the Mécamaq website for more information

Characteristics

Operation
hydraulic
Function
forming
Structure
4-column
Force

150 tf

Opening

800 mm
(31 in)

Stroke

400 mm
(15.748 in)

Max. pressure

295 bar
(4,279 psi)

Working speed

4 mm/s

Weight

29,000 kg
(63,934 lb)

Overall width

4,320 mm
(170 in)

Overall height

3,590 mm
(141 in)

Description

PLC&HMI 7". Front console with movable arm. Features Columns Ø (mm) - 120 Lower plate (mm) - 2500x1300 Upper plate (mm) - 2500x1300 Engine power (HP) - 30 Approximation speed (mm/s) - 100 Depth (mm.) - 1830
