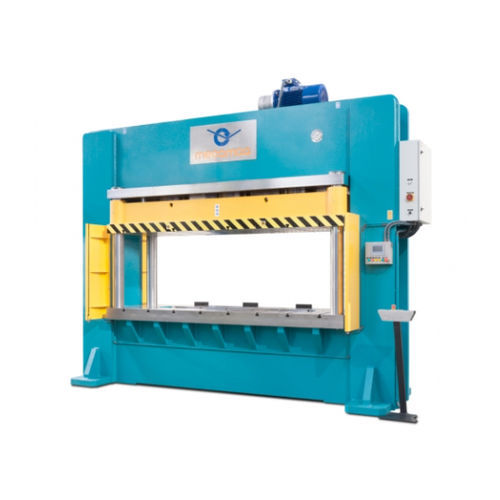

Hydraulic press PHA400 4483formingcustom-made
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Other characteristics
- custom-made
- Force
400 tf
- Opening
900 mm
(35 in)- Stroke
500 mm
(19.685 in)- Max. pressure
270 bar
(3,916 psi)- Working speed
5 mm/s
- Weight
25,000 kg
(55,116 lb)- Overall length
4,200 mm
(165 in)- Overall width
1,600 mm
(63 in)- Overall height
3,600 mm
(142 in)
Description
Ø cylindrical columns (mm)140
Lower and upper plate (mm)2600 x 900
Engine power (HP)25
Approximation speed (mm/sec)17
