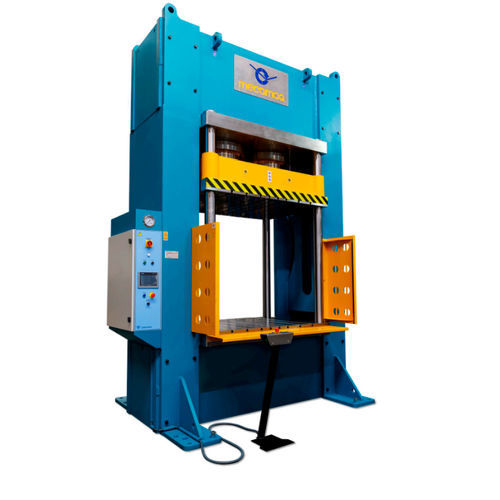

Hydraulic press PHA1000R 5916 59174-columnPLC-controlled
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Structure
- 4-column
- Control
- PLC-controlled
- Force
1,000 tf
- Opening
1,500 mm
(59 in)- Stroke
800 mm
(31.496 in)- Table width
1,300 mm
(51 in)- Table length
1,500 mm
(59 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
2 mm/s, 5 mm/s
- Weight
30,000 kg
(66,139 lb)- Overall width
3,000 mm
(118 in)- Overall height
4,900 mm
(193 in)
Description
Custom design
Approximation speed 130mm/s.
Recoil speed 150mm/s.
PLC & HMI control
Features
Columns Ø (mm) -
120
Engine power (HP) -
25
Depth (mm.) -
2200
