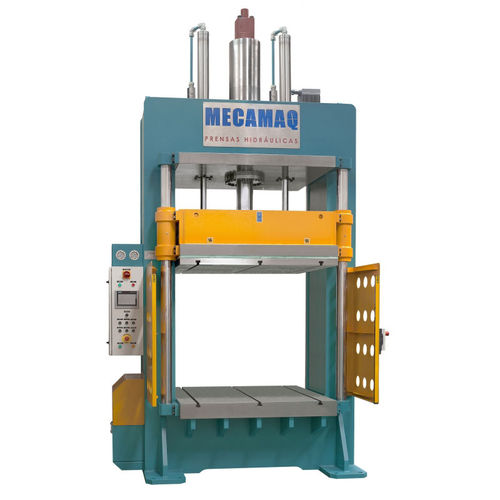

hydraulic press / forming / vertical / custom



  • Operation:


  • Function:


  • Other characteristics:

    vertical, custom, 4-column

  • Opening:

    1,500 mm


Power of the machine 200 Tm by means of 1 main cylinder + 2 auxiliar cylinders for the fast speed.
Upper and lower plates dimensions 1.400 x 1.400 mm.
Upper plate guided by means of 4 cylindrical columns Ø100 with bronze fittings.
Maximum opening between plates: 1.500 mm.
Stroke of the cylinder: 1.100 mm.
Main hydraulic system with hydraulic pump with variable volume of flow with fill up valve for the main cylinder.
Approximation speed: 130 mm/seg.
Recoil speed: 170 mm/seg.
Maximum-minimum work speed: 25-9 mm/seg.
Engine power: 20 Hp (15 Kw).
Maximum pressure for hydraulic system 310 Bars.
Control of the machine by means of SIEMENS tactile panel (7”).
Photoelectric barriers for safe on the front side.
Weight: 15.000Kg.
