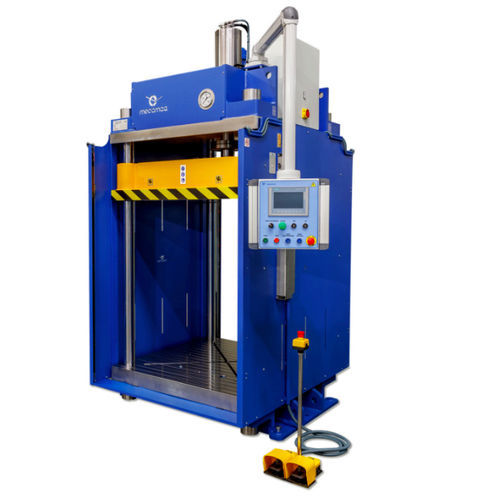

Hydraulic press PHA80 58614-columnPLC-controlled
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Structure
- 4-column
- Control
- PLC-controlled
- Force
80 tf
- Opening
1,400 mm
(55 in)- Stroke
700 mm
(27.559 in)- Table width
1,000 mm
(39 in)- Table length
1,000 mm
(39 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
5 mm/s
- Weight
7,500 kg
(16,535 lb)- Overall width
1,506 mm
(59 in)- Overall height
2,900 mm
(114 in)
Description
Approximation speed 9mm/s.
PLC & HMI CONTROL 7"
Features
Columns Ø (mm)
90
Engine power (HP)
5,5
Depth (mm.)
1700
