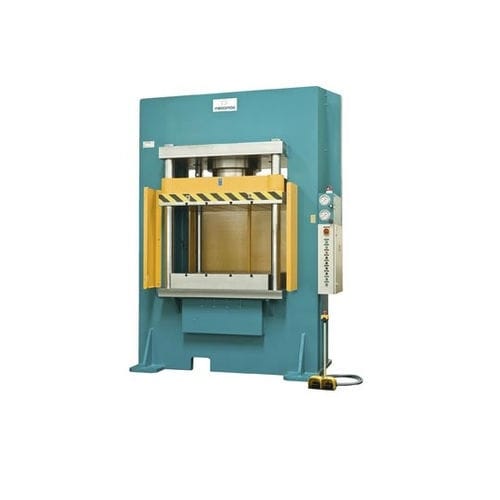

hydraulic press / drawing / cutting / double-action
PHA-500

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Function:

    drawing, cutting

  • Other characteristics:

    double-action

  • Opening:

    Min.: 500 mm

    Max.: 800 mm

Description

Press MECAMAQ of manufacture to measure, used for works of forming and cut of lids of deposits and vats.
Power 500tm with a surface of work useful 1.200 x 1.200 mm.
Opening maximum between tables of 800 mm and course of 500 mm.
Hydraulic cushion of double effect and 250 Tm with a plate of 750 x 750 mm.
Hydraulic group Bosch Rexroth with bomb of pistons of changeable wealth driven by an engine of 30 Hp, obtaining a speed of 25 mm x second.
All the adjustments of course, change speed, pressures and times so much of the press like the cushion are realized by a control by tactile screen of programming. Incorporates system of antifallen safety of the mobile table and protection of the zone of work into photoelectric safety fences.
The weight of the machine is of 25.000 Kg.
