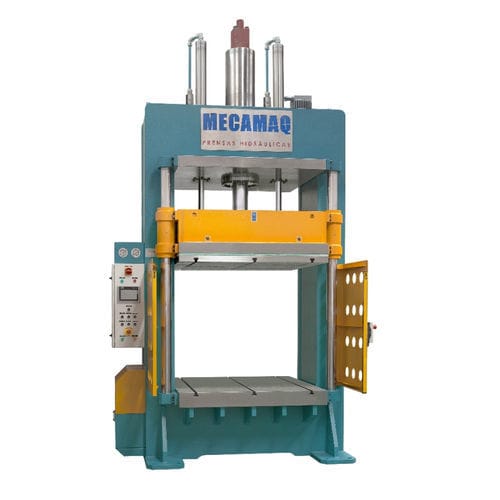

Hydraulic press PHA-200deep drawingfor steelcustom-made
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- deep drawing
- Applications
- for steel
- Other characteristics
- custom-made
- Force
20 tf
- Opening
500 mm, 800 mm
(20 in, 31 in)- Stroke
300 mm, 600 mm
(11.811 in, 23.622 in)- Max. pressure
300 bar
(4,351 psi)- Working speed
Max.: 6 mm/s
Min.: 1 mm/s
- Hydraulic pump power
15 kW
- Weight
900 kg
(1,984 lb)- Overall length
850 mm
(33 in)- Overall width
600 mm
(24 in)- Overall height
1,850 mm
(73 in)
Description
Lower plate 800 x 800 mm
Upper plate 800 x 800 mm
Hydraulic group with pistons pump of variable flow
Engine power 15 Hp
Hydraulic cushion with 100Tm capacity with plate 700 x 700 mm
Hydraulic ejector 10 Tm capacity
Photoelectric barrier for safe on front side
Application: deep drawing for steel pieces
Features
Power (tons) - 150
Columns Ø (mm) - 110
Lower and upper plate (mm) - 500x500
Engine power (HP) - 15
Approximation speed (mm/s) - 30
