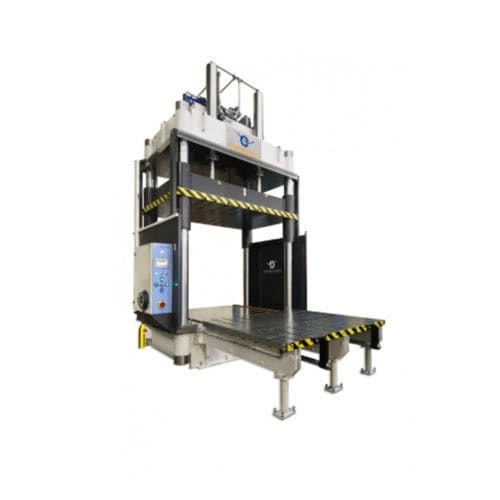

Hydraulic press PHA300 5267forming4-column
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- 4-column
- Force
600 tf
- Opening
2,200 mm
(87 in)- Stroke
1,500 mm
(59.055 in)- Max. pressure
290 bar
(4,206 psi)- Working speed
Max.: 6 mm/s
Min.: 1 mm/s
- Weight
32,500 kg
(71,650 lb)- Overall width
3,250 mm
(128 in)- Overall height
5,250 mm
(207 in)
Description
PLC&HMI 7".
Activation by wired handheld controller.
Features
Columns Ø (mm) - 200
Lower and upper plate (mm) - 2200x1800
Engine power (HP) - 25
Approximation speed (mm/s) - 25
Depth (mm.) - 4500
