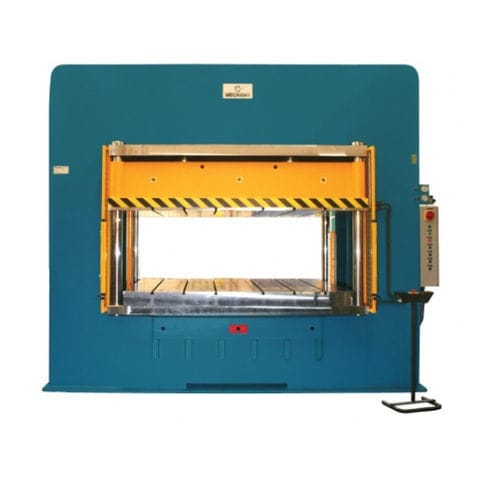

Hydraulic press PHA-400forming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Force
300 tf
- Opening
1,300 mm
(51 in)- Stroke
900 mm
(35.433 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
11 mm/s
- Weight
14,000 kg
(30,865 lb)- Overall length
2,530 mm
(100 in)- Overall width
1,650 mm
(65 in)- Overall height
3,900 mm
(154 in)
Description
2.500 x 1.500 mm usable bench measurements.
500 mm upper bench route.
Hydraulic motor with variable flow piston pump.
50 Hp engine power.
100 Tn hydraulic cushion, with 1.500 x 1.000 mm plate.
