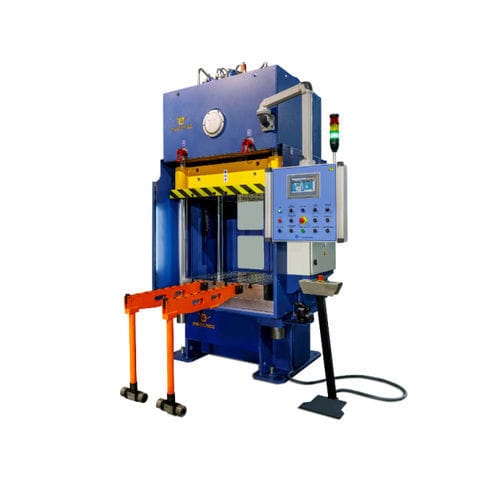

Hydraulic press PHA100RC 58604-column
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Structure
- 4-column
- Force
100 tf
- Opening
900 mm
(35 in)- Stroke
700 mm
(27.559 in)- Table width
900 mm
(35 in)- Table length
1,100 mm
(43 in)- Max. pressure
260 bar
(3,771 psi)- Working speed
16 mm/s
- Weight
9,000 kg
(19,842 lb)- Overall width
1,795 mm
(71 in)- Overall height
3,355 mm
(132 in)
Description
Approximation speed 140mm/s.
PLC & HMI 9" control.
Proportional Q control.
Features
Engine power (HP) -
25
Depth (mm.) -
2025
