Hydraulic press PHA-80
formingfor production4-column

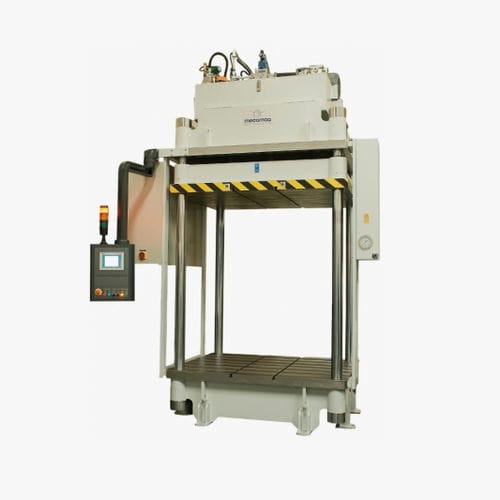

Hydraulic press - PHA-80 - Mécamaq - forming / for production / 4-column
Hydraulic press - PHA-80 - Mécamaq - forming / for production / 4-column
Hydraulic press - PHA-80 - Mécamaq - forming / for production / 4-column - image - 2
Add to favorites
Compare this product
Go to the Mécamaq website for more information

Characteristics

Operation
hydraulic
Function
forming, for production
Structure
4-column
Other characteristics
vertical
Force

80 tf, 100 tf

Opening

1,700 mm
(67 in)

Stroke

320 mm
(12.598 in)

Max. pressure

260 bar
(3,771 psi)

Working speed

Max.: 25 mm/s

Min.: 9 mm/s

Weight

6,850 kg
(15,102 lb)

Overall width

1,500 mm
(59 in)

Overall height

2,700 mm
(106 in)

Description

Dimensions of tables between columns of 1.400 x 1.400 mm, with an opening of 1.700 mm, and course of the top table of 500 mm. Hydraulic group with bomb of changeable wealth of maximum speed to 60 mm x second and work 15 mm x second. Power of the engine: 15 Hp. Electrical box with automaton SIEMENS and tactile screen for the programming of all the parameters.
