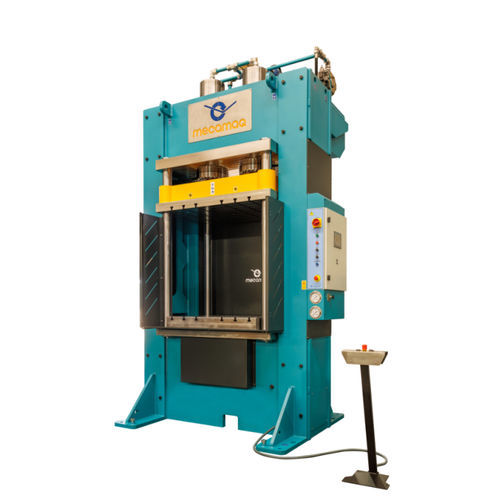

Hydraulic press PHA300C 5758forming4-column
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- 4-column
- Force
300 tf
- Opening
1,300 mm
(51 in)- Stroke
900 mm
(35.433 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
11 mm/s
- Weight
14,000 kg
(30,865 lb)- Overall width
2,400 mm
(94 in)- Overall height
4,250 mm
(167 in)
Description
PLC&HMI 7".
Features
Columns Ø (mm) - 110
Lower and upper plate (mm) - 1200x1000
Engine power (HP) - 40
Approximation speed (mm/s) - 40
Cushion plate (mm) - 800x800
Cushion power [tons] - 120
Cushion stroke [mm] - 400
Depth (mm.) - 1870
