Disc brake EFAL electromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- electromagnetic
- Torque
Min.: 1.8 Nm
(1.327612 ft.lb)Max.: 500 Nm
(368.781075 ft.lb)- Power
Min.: 8 W
Max.: 65 W
Description

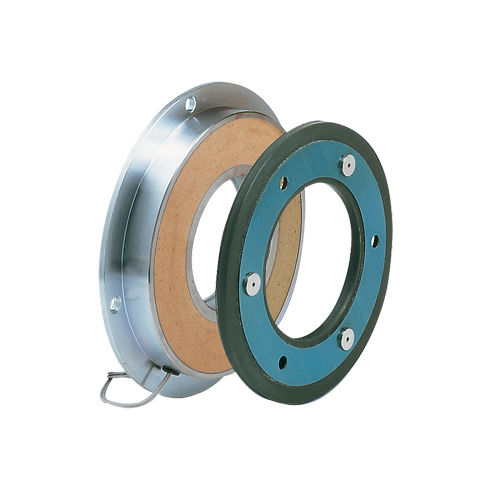

Single-disc electromagnetic brake with laminated armature.
Tension 24 V dc – 0 + 15%
Used for dry applications.
Very compact and small.
Also available with external (Pic.2) or internal hub (Pic.3)
The Magnet cup (1) is fastened onto a fixed support, while the armature (3) is connected to the kinematic system.
