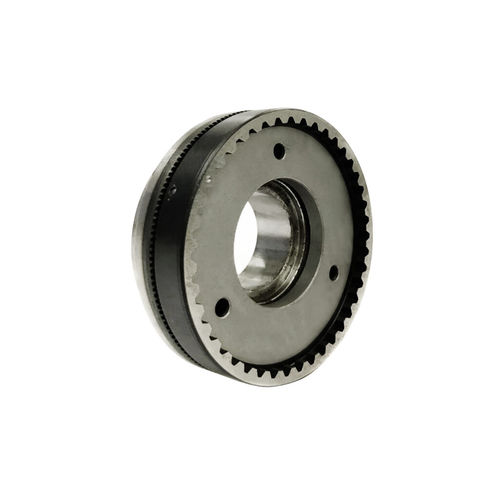

Disc brake EC/ZD-Felectromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- electromagnetic
- Torque
Min.: 100 Nm
(73.7562 ft.lb)Max.: 6,000 Nm
(4,425.3729 ft.lb)- Power
Min.: 6 W
Max.: 162 W
Description
Electromagnetic brake with front toothing, operation with milled flange EC/ZD-F
Tension 24 V dc – 0 + 15%
Used for dry and oil bath applications.
It must be engaged at standstill or at very low rpm.
The magnet cup is fastened to the machine frame, while the flange has to be connected to the rotating part.
Catalogs
Electromagnetic clucthes and brakes
162 Pages
