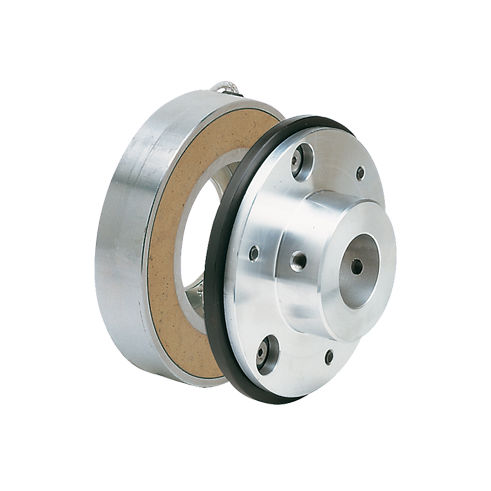

Disc brake EMLF electromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- electromagnetic
- Torque
Min.: 6 Nm
(4.425373 ft.lb)Max.: 160 Nm
(118.009944 ft.lb)- Rotational speed
3,000 rpm, 4,000 rpm, 5,000 rpm, 6,000 rpm, 8,000 rpm
(18,849.5559 rad.min-1, 25,132.7412 rad.min-1, 31,415.9265 rad.min-1, 37,699.1118 rad.min-1, 50,265.4825 rad.min-1)- Power
Min.: 9 W
Max.: 50 W
Description
Single-disc electromagnetic brake with laminated armature and external flanged hub.
Tension 24 V dc – 0 + 15%
Used for dry applications.
Also available with external hub (Pic.2)
The Magnet cup (1) is fastened onto a fixed support, while the hub (6) is splined to the shaft to be braked.
